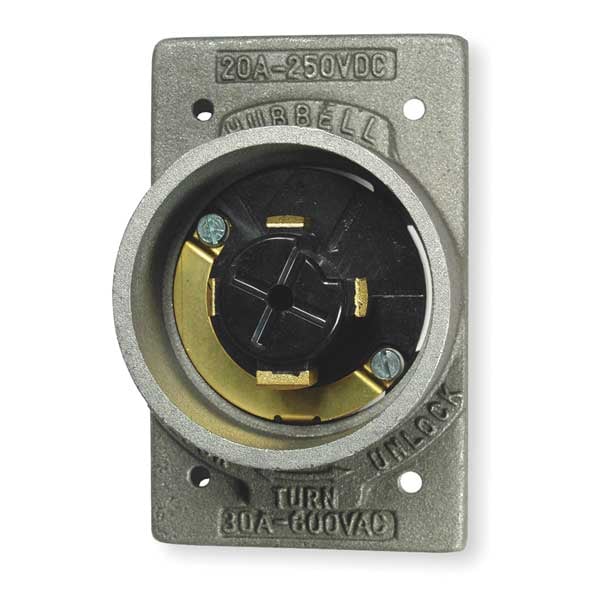

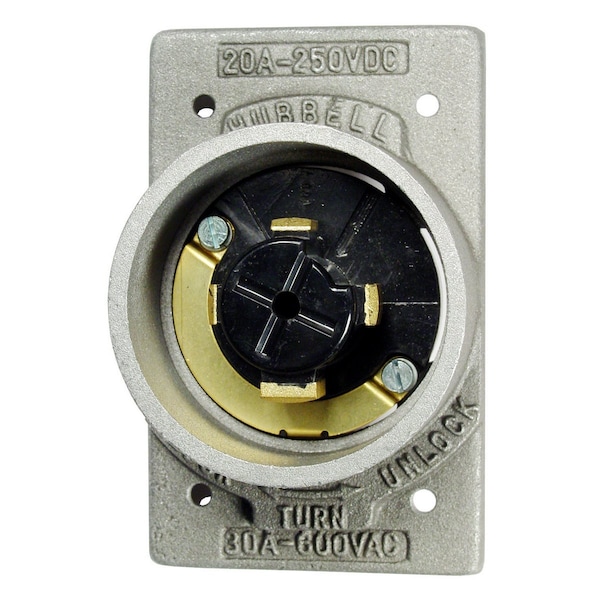

30/20A Flanged Locking Inlet 3P 4W 600VAC/250VDC
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Flanged Locking Inlet |
| NEMA Configuration | Non-NEMA |
| Voltage | 600V AC/250V DC |
| Amps | 30/20 |
| Color | Gray |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| IP Rating | IP30 |
| Grade | General Use |
| Mounting Type | Flush Mount |
| Special Features | With Locking Cover |
| Material | Aluminum |
| Standards | CSA Certified, UL Listed |
| NEMA Rating | 12, 4, 4X |
| Shrouded | No |
| Current Rating | 30 A |
| UL 94 Flammability Rating | V-0 |
| NEMA Enclosure Rating | 12, 4, 4X |
| Maximum Wire Size | 6 AWG |
| Resistance Properties | Moisture Resistant |
| Flange Type | Flanged |
| Grounding | Grounded |
| For Environment | Dry |
| Housing Material | Aluminum |
| Maximum Operating Temperature | 75 deg C |
| Face Plate Height | 4.56 in |
| NEMA Plug Configuration | Non-NEMA |
| Flange Diameter | 2.84 in |
| Voltage Rating | 250V DC/600V AC |
| Flange Height | 4.56 in |
| Minimum Wire Size | 10 AWG |
| Blade Material | Brass |
| Flange Material | Steel |
| Housing Color | Silver |
| Overall Depth | 2.4 in |
| For Location | Indoor |
| Market | Industrial |
| Wire Connection Type | Screw Terminals |
| Number of Blades | 4 |
| Mount Type | Flush |
| Minimum Operating Temperature | -40 Degrees C |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Flammability | UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors |
| Weight (Lbs.) | 0.85 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Lock Type | Hubbellock |
| Wire Size | #10 AWG - #6 AWG solid or stranded copper wire only. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Package Quantity | 1 |
