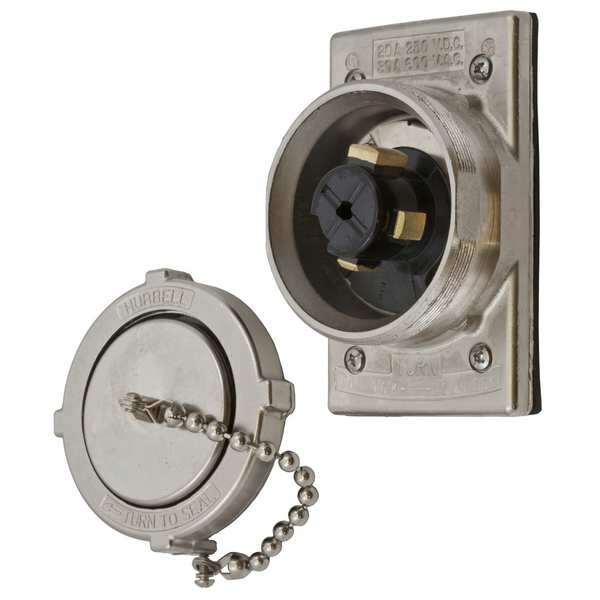

30/20A Flanged Locking Inlet 3P 4W 600VAC/250VDC
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 600V AC/250V DC |
| Amps | 30/20 |
| Color | Black |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| NEMA Rating | 12, 4, 4X |
| IP Rating | IP30 |
| Standards | CSA Certified, UL Listed |
| Material | Nylon |
| Grade | General Use |
| Mounting Type | Flush Mount |
| Special Features | With Cover |
| Maximum Operating Temperature | 75 deg C |
| UL 94 Flammability Rating | V-0 |
| Current Rating | 20/30 A |
| NEMA Enclosure Rating | 12, 4, 4X |
| Flange Type | Flanged |
| Shrouded | No |
| Wire Connection Type | Screw Terminals |
| Flange Material | Steel |
| NEMA Plug Configuration | Non-NEMA |
| Face Plate Height | 4.56 in |
| Market | Industrial |
| Overall Depth | 2.84 in |
| Number of Blades | 4 |
| Resistance Properties | Moisture Resistant, Watertight, Shatter and Crack Resistant |
| Housing Color | Silver |
| Flange Diameter | 2.84 in |
| Voltage Rating | 250V DC/600V AC |
| Housing Material Finish | Nickel Plated |
| Face Diameter | 1.87 in |
| Mount Type | Flush |
| Flange Height | 4.56 in |
| Blade Material | Brass |
| Maximum Wire Size | 6 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Housing Material | Brass |
| Grounding | Grounded |
| Minimum Wire Size | 10 AWG |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Wire Size | #10 AWG - #6 AWG solid or stranded copper wire only. |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Weight (Lbs.) | 1.95 |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Lock Type | Hubbellock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Type | Flanged Inlet |
| Amperage Rating | 20/30 A |
| Environmental Conditions | Watertight |
| Current / Amperage Rating | 20/30 A |
| Industry Standard(s) | Certified to CSA Standard Listed to UL Standard |
| Item Type | 20A / 30A Grounding Hubbellock® Flanged Inlet |
| Height | 2.47 in |
| Material - Mounting Hardware | Screw Mounting |
| Dimensions | 4.56 in x 3-1/2 in x 2.47 in |
| Insulation | Insulated Body |
| Connectivity | Back Wired Screw Terminals |
| Voltage Rating Description | 250 VDC/600 VAC |
| Width | 3-1/2 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dielectric Strength | Withstands 2,000V minimum |
| Display Size | Standard Sized Product |
| Application | Extra Heavy Duty Industrial |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Length | 4.56 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
