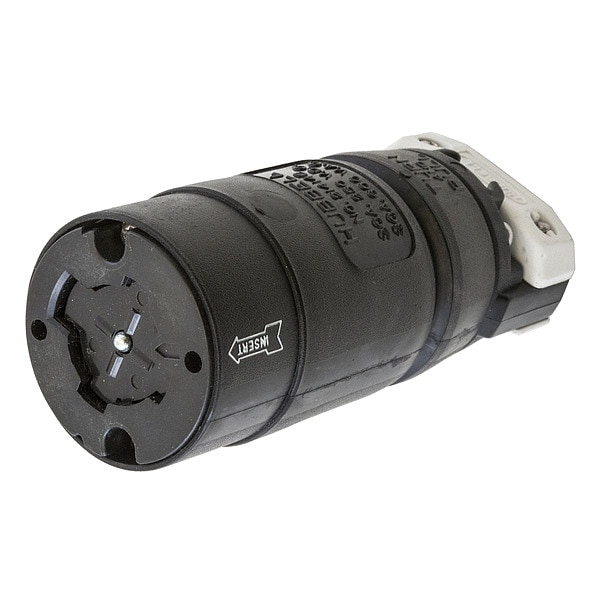

Conector de bloqueo de 30/20A 3P 4W 600VAC/250VDC.
| Item | Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Locking Connector |
| Amps - Plugs and Receptacles | 30/20 |
| Amps | 30/20 |
| NEMA Plug Configuration - Plugs and Receptacles | 30A, Non-NEMA |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Voltage | 600VAC/250VDC |
| NEMA Configuration | Non-NEMA |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Color | Black |
| Grade - Plugs and Receptacles | Industrial |
| Material | Nylon |
| Power Indicator | No |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| Corrosion Resistant | No |
| Cord Size | 0.63 to 1.2 in |
| Grade | Industrial/Commercial |
| Antimicrobial | No |
| Phase | Three |
| IP Rating | IP30 |
| Body Material | Black Rynite |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Wire Connection Type | Screw Terminals |
| Voltage Rating | 250V DC/600V AC |
| For Environment | Dry |
| Outside Diameter | 2.438 in |
| Overall Length | 6 in |
| Power Indicating Light | No |
| Maximum Wire Size | 6 AWG |
| For Location | Indoor |
| Resistance Properties | Impact Resistant |
| Housing Color | Black, White |
| For Minimum Cable Diameter | 0.7 in |
| Minimum Operating Temperature | -40 deg C |
| Contact Material | Bronze |
| Market | Industrial |
| Shrouded | No |
| Current Rating | 20/30 A |
| Housing Material | Nylon |
| Grounding | Grounded |
| UL 94 Flammability Rating | V-0 |
| Midget Locking | No |
| Connection Orientation | Straight |
| For Maximum Cable Diameter | 1.2 in |
| Maximum Operating Temperature | 75 deg C |
| Minimum Wire Size | 10 AWG |
| NEMA Receptacle Configuration | Non-NEMA |
| Cap Type | No Cap or Cover |
| Type | Connector Body |
| Cord Dia. Range | .700"-1.200" |
| Flame Resistant | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors |
| Dielectric Strength | 2,000V minimum |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight | 1.05 |
| Item Type | Female Connector |
| Cable Range | 0.7 to 1.2 in |
| Length | 6 in |
| Voltage Rating Description | 250 VDC/600 VAC |
| Cord Range | 0.70"-1.20" |
| Dimensions | 6 in x 2.44 in x 2.44 in |
| Height | 2.44 in |
| Wire Size | #10 AWG to #6 AWG |
| Display Size | Standard |
| Current / Amperage Rating | 20/30 A |
| Connectivity | Pressure Terminal Screws |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Amperage Rating | 20/30 A |
| Material - Mounting Hardware | Cord Mounted |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage Withstand - 2,000V minimum Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Insulation | Insulated Body |
| Width | 2.44 in |
| Application | Heavy Duty Industrial |
| Package Quantity | 1 |
