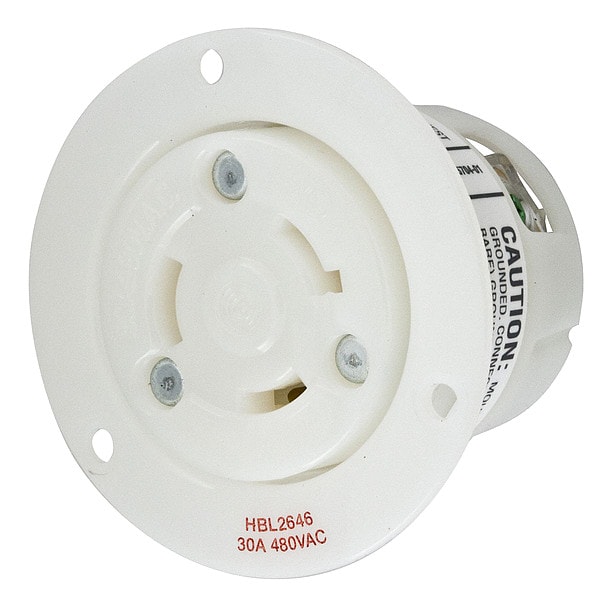

30A Flanged Twist-Lock Receptacle 2P 3W 480VAC
| Item | Flanged Locking Receptacle |
|---|---|
| NEMA Configuration | L8-30 |
| Voltage | 480V AC |
| Amps | 30 |
| Color | White |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Mounting Type | Flush Mount |
| IP Rating | IP20 |
| Grade | Industrial |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Special Features | With Cover |
| HP | 5.0 |
| NEMA Rating | 12, 4X |
| Material | Nylon |
| Flange Shape | Round |
| Polarized | Yes |
| Connection Orientation | Straight |
| Minimum Operating Temperature | -40 Degrees C |
| Horsepower Rating | 5 HP |
| Includes Mounting Hardware | Yes |
| Grounding | Grounded |
| UL 94 Flammability Rating | V-2 |
| Number of Gangs | 1 |
| Voltage Rating | 480V AC |
| For Location | Indoor |
| Housing Color | White |
| For Environment | Dry |
| Wire Connection Type | Screw Terminals |
| Housing Material | Nylon |
| Resistance Properties | Moisture Resistant |
| Mount Type | Flush |
| Minimum Wire Size | 16 AWG |
| Flange Type | Flanged |
| Market | Industrial |
| NEMA Enclosure Rating | 1 |
| Shrouded | No |
| Features | Accepts Slotted, Phillips, and Robertson Head Drivers |
| Current Rating | 30 A |
| Includes | Mounting Screws |
| NEMA Receptacle Configuration | L8-30R |
| AFCI | No |
| Maximum Operating Temperature | 75 deg C |
| Maximum Wire Size | 8 AWG |
| Contact Material | Brass |
| Cover Type | No Cover |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #10 AWG |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Weight (Lbs.) | 0.25 |
| Flange Material | Natural White Nylon |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Lock Type | Twist-lock |
| Spring Material | Brass |
| Width | 2.88 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Back Wired Screw Terminals |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Application | Insulgrip |
| Item Type | 30A Insulgrip® Flanged Receptacle |
| Amperage Rating | 30 A |
| Horsepower - Maximum | 5 |
| Dimensions | 2.88 in x 2.88 in x 2.09 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Display Size | Standard Sized Product |
| Voltage Rating Description | 480 VAC |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Height | 2.09 in |
| Type | Flanged Receptacle |
| Current / Amperage Rating | 30 A |
| Length | 2.88 in |
| Package Quantity | 1 |
