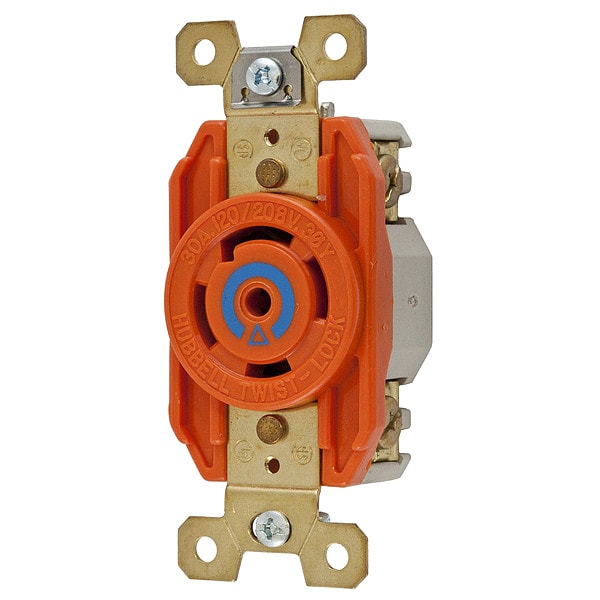

30A Isolated Ground Locking Receptacle 4P 5W 120/208VAC
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L21-30 |
| Voltage | 120/208V AC |
| Amps | 30 |
| Color | Orange |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase | Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Material | Valox |
| IP Rating | IP20 |
| NEMA Rating | 12, 4X |
| Grade | Industrial |
| Mounting Type | Flush Mount |
| HP | 5.0 |
| Special Features | With Isolated Ground |
| Flange Width | Not Applicable |
| UL 94 Flammability Rating | V-2 |
| Flange Height | Not Applicable |
| Includes | Mounting Hardware |
| Market | Industrial |
| Current Rating | 30 A |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Minimum Operating Temperature | -40 Degrees C |
| Minimum Wire Size | 16 AWG |
| Maximum Operating Temperature | 75 deg C |
| Housing Material | Nylon |
| Flange Diameter | Not Applicable |
| Housing Color | Orange |
| Mount Type | Flush |
| Horsepower Rating | 3 HP |
| Cover Type | No Cover |
| Maximum Wire Size | 8 AWG |
| Flange Type | Non-Flanged |
| Number of Gangs | 1 |
| AFCI | No |
| Resistance Properties | Impact Resistant |
| NEMA Receptacle Configuration | L21-30R |
| Wire Connection Type | Screw Terminals |
| Shrouded | No |
| Voltage Rating | 120/208V AC |
| For Environment | Dry |
| Includes Mounting Hardware | Yes |
| Grounding | Grounded |
| For Location | Indoor |
| Polarized | Yes |
| NEMA Enclosure Rating | 1 |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Weight (Lbs.) | 0.3 |
| Base Material | Nylon Polyester |
| Lock Type | Twist-lock |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Spring Material | .040" Brass |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 - #8 AWG solid or stranded copper wire Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Height | 1.31 in |
| Item Type | 30A Single Flush Receptacle |
| Material - Mounting Hardware | Screw Mounting |
| Connectivity | Back and Side Wired Screw Terminals |
| Application | Heavy Duty Industrial |
| Voltage Rating Description | 120/208 V |
| Current / Amperage Rating | 30 A |
| Display Size | Standard Sized Product |
| Dielectric Strength | Withstands 2,000V minimum |
| Horsepower - Maximum | 3 |
| Dimensions | 3.28 in x 1.67 in x 1.31 in |
| Width | 1.67 in |
| Amperage Rating | 30 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Length | 3.28 in |
| Listings | UL 498 Fed.Spec. W-C-596 CSA C22.2 No.42 |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Package Quantity | 1 |
