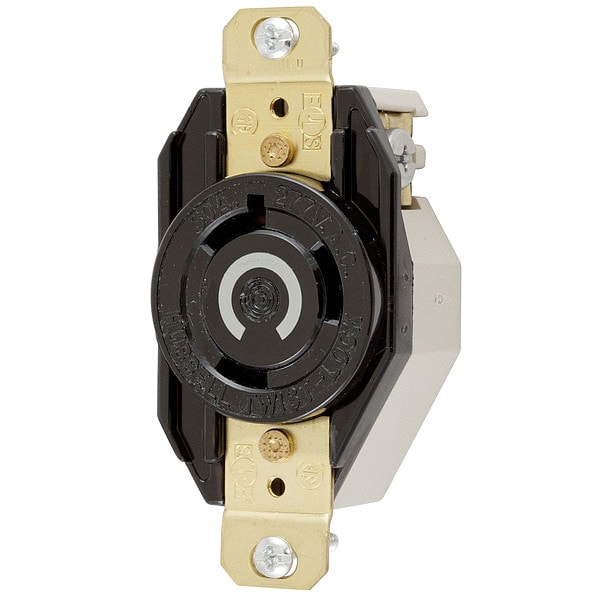

30A Locking Receptacle 2P 3W 277VAC L7-30R BK
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L7-30 |
| Voltage | 277V AC |
| Amps | 30 |
| Color | Black |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Grade | Industrial |
| IP Rating | IP20 |
| Mounting Type | Flush Mount |
| HP | 3.0 |
| Special Features | Corrosion resistant |
| NEMA Rating | 1 |
| Material | Cast aluminum |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| For Environment | Dry |
| Resistance Properties | Corrosion Resistant |
| UL 94 Flammability Rating | V-2 |
| For Location | Indoor |
| Minimum Wire Size | 16 AWG |
| Horsepower Rating | 3 HP |
| Flange Width | Not Applicable |
| Flange Height | Not Applicable |
| Includes Mounting Hardware | Yes |
| Minimum Operating Temperature | -40 Degrees C |
| Grounding | Grounded |
| Shrouded | No |
| Flange Type | Non-Flanged |
| Cover Type | No Cover |
| Current Rating | 30 A |
| Voltage Rating | 277V AC |
| Polarized | Yes |
| Mount Type | Flush |
| Maximum Wire Size | 8 AWG |
| Flange Diameter | Not Applicable |
| NEMA Enclosure Rating | 1 |
| Number of Gangs | 1 |
| AFCI | No |
| Housing Material | Nylon |
| Market | Industrial |
| Housing Color | Black |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 75 deg C |
| Includes | Mounting Screws |
| NEMA Receptacle Configuration | L7-30R |
| Base Material | Nylon Polyester |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Lock Type | Twist-lock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.25 |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Spring Material | .040" Brass |
| Connectivity | Back and Side Wired Screw Terminals |
| Type | Single Flush Receptacle |
| Item Type | Single Flush Receptacles |
| Voltage Rating Description | 277 VAC |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Application | Heavy Duty Industrial |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 30 A |
| Horsepower - Maximum | 3 |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Dielectric Strength | Withstands 2,000V minimum |
| Material - Mounting Hardware | Screw Mounting |
| Height | 1.31 in |
| Width | 1.7 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Length | 3.28 in |
| Display Size | Standard Sized Product |
| Current / Amperage Rating | 30 A |
| Dimensions | 3.28 in x 1.7 in x 1.31 in |
| Package Quantity | 1 |
