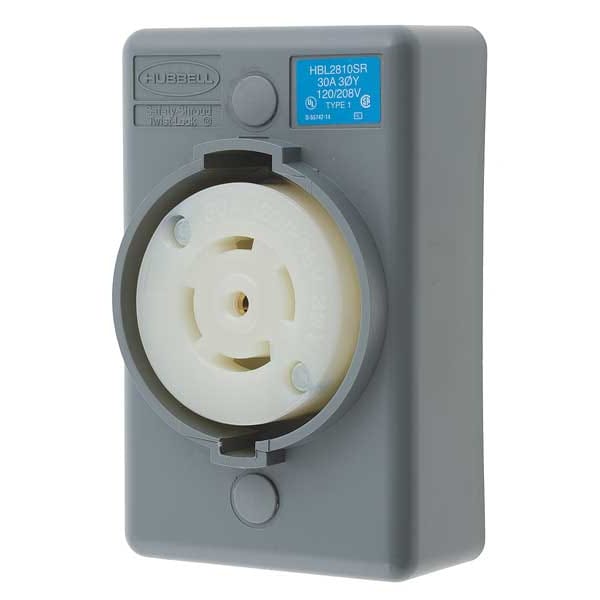

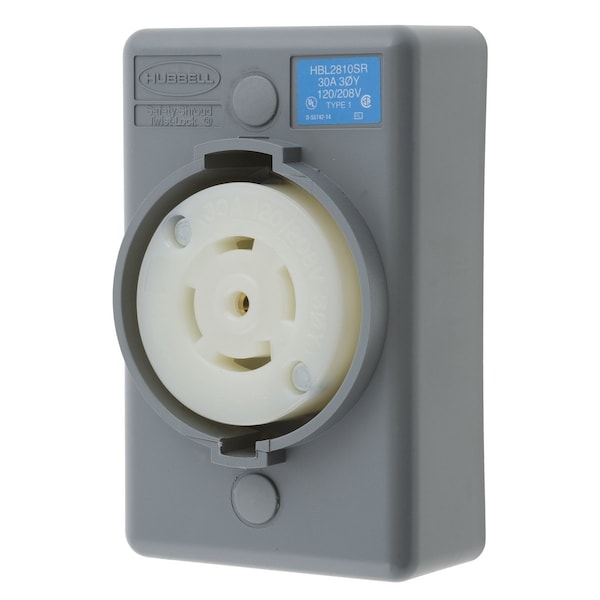

30A Locking Receptacle 4P 5W 120/208VAC L21-30R GY
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L21-30 |
| Voltage | 120/208V AC |
| Amps | 30 |
| Color | Gray |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase | Three |
| Shrouded / Non-Shrouded | Shrouded |
| Wiring Style | Standard |
| Mounting Type | Surface Mount |
| HP | 3.0 |
| Special Features | Corrosion resistant |
| NEMA Rating | 12, 4X |
| IP Rating | IP20 |
| Material | Steel |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Grade | Industrial |
| Current Rating | 30 A |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Housing Material | Valox |
| Housing Color | White, Gray |
| NEMA Enclosure Rating | 1 |
| Flange Width | Not Applicable |
| Flange Diameter | Not Applicable |
| For Location | Indoor |
| Number of Gangs | 1 |
| Flange Type | Non-Flanged |
| Cover Type | No Cover |
| Resistance Properties | Corrosion Resistant, Impact Resistant |
| Voltage Rating | 120/208V AC |
| Wire Connection Type | Screw Terminals |
| For Environment | Dry |
| Polarized | Yes |
| Mount Type | Surface |
| Shrouded | Yes |
| Contact Material | Brass |
| NEMA Receptacle Configuration | L21-30R |
| Maximum Operating Temperature | 75 deg C |
| Flange Height | Not Applicable |
| Horsepower Rating | 3 HP |
| AFCI | No |
| Grounding | Grounded |
| Minimum Wire Size | 16 AWG |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | V-2 |
| Market | Industrial |
| Lock Type | Twist-lock |
| Wire Size | #10 AWG |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Flange Material | Gray Valox 357U |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Spring Material | .031" Brass |
| Weight (Lbs.) | 0.5 |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Package Quantity | 1 |
