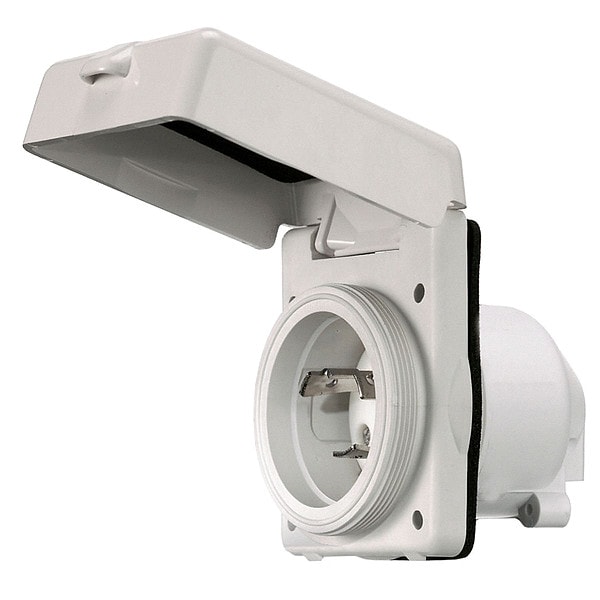

Entrada de bloqueo empotrada marina de 30 amperios, 2 polos 3 hilos, 125VCA.
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Configuration | L5-30 |
| Voltage | 125V AC |
| Amps | 30 |
| Color | White |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| IP Rating | IP56 |
| Material | Thermoplastic/Composite |
| Standards | UL Listed |
| NEMA Rating | 12, 4X |
| Grade | Marine |
| Special Features | With Cover |
| Mounting Type | Flush Mount |
| NEMA Plug Configuration | L5-30P |
| Current Rating | 30 A |
| Shrouded | No |
| NEMA Enclosure Rating | 12, 4X |
| Maximum Operating Temperature | 75 deg C |
| Minimum Operating Temperature | -40 Degrees C |
| Grounding | Grounded |
| Housing Material | Thermoplastic |
| Housing Color | White |
| Number of Blades | 3 |
| Voltage Rating | 125V AC |
| Includes Mounting Hardware | Yes |
| Wire Connection Type | Screw Terminals |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Blade Material | Nickel-Plated Brass |
| Resistance Properties | Corrosion Resistant, Watertight |
| Mount Type | Flush |
| Maximum Surge Current | 30 A |
| Weight (Lbs.) | 0.75 |
| Lock Type | Shore Power Inlets |
| Wire Size | #12 AWG to #10 AWG |
| Application | Wiring Devices |
| Environmental Conditions | Watertight |
| Display Size | Standard Sized Product |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| Wattage | 3750 |
| Dielectric Strength | Withstands 3000V Minimum in |
| Industry Standard(s) | UL Listed |
| Amperage Rating | 30 A |
| Performance | Environmental - Moisture Resistance - IP56 Suitability |
| Item Type | Hull Mount Single |
| Insulation | Insulated Body |
| Current / Amperage Rating | 30 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Connectivity | Pressure Terminal Screws |
| Material - Mounting Hardware | Screw Mounting |
| Package Quantity | 1 |
