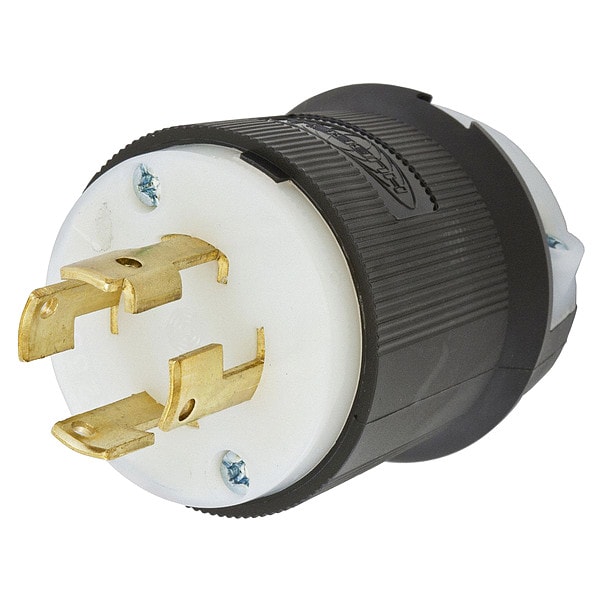

30A Twist-Lock Plug 3P 4W 250VAC BK/WT
| Item - Plugs and Receptacles | Locking Plug |
|---|---|
| Item | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Length | 2.33 in |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 30 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 30A |
| Voltage - Plugs and Receptacles | 250V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Grade | Industrial |
| Cord Size | 0.35 to 1.15 in |
| Color | Black, White |
| NEMA Configuration | Non-NEMA, 4 Blade |
| Corrosion Resistant | No |
| Material | Nylon |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Antimicrobial | No |
| Color - Plugs and Receptacles | Black, White |
| Amps | 30 |
| IP Rating | IP20 |
| Voltage | 250VAC |
| Application | Extra Heavy Duty Industrial |
| Outside Diameter | 2.33 in |
| Housing Color | Black, White |
| For Location | Indoor |
| Blade Material | Brass |
| Overall Length | 2.33 in |
| For Environment | Dry |
| Shrouded | No |
| Number of Blades | 4 |
| Connection Orientation | Straight |
| For Minimum Cable Diameter | 0.35 in |
| Housing Material | Nylon |
| Polarized | Yes |
| Face Diameter | 2.21 in |
| Market | Industrial |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Current Rating | 30 A |
| Grounding | Grounded |
| Voltage Rating | 250V AC |
| Maximum Operating Temperature | 75 deg C |
| Wire Connection Type | Screw Terminals |
| UL 94 Flammability Rating | HB |
| For Maximum Cable Diameter | 1.15 in |
| Body Length | 2.33 in |
| Minimum Operating Temperature | -40 deg C |
| Minimum Wire Size | 16 AWG |
| NEMA Plug Configuration | Non-NEMA |
| Maximum Wire Size | 8 AWG |
| Wire Size | #16 AWG to #8 AWG |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum Continuous 75A deg C; Minimum -40A deg C (w/o impact) |
| Weight (Lbs.) | 0.35 |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Amperage Rating | 30 A |
| Cord Type | All Listed Portables |
| Dielectric Strength | Withstands 2,000V minimum |
| Connectivity | Screw Terminals |
| Width | 2.33 in |
| Cable Range | 0.35 to 1.15 in |
| Material - Mounting Hardware | Cord Mounted |
| Voltage Rating Description | 3 Phase 250 VAC |
| Type | Plugs |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Current / Amperage Rating | 30 A |
| Display Size | Standard Sized |
| Item Type | Plug |
| Height | 2-3/4 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Nema Rating | Non-NEMA |
| Cord Range | 0.350"-1.150" |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dimensions | 2.33 in x 2.33 in x 2-3/4 in |
| Package Quantity | 1 |
