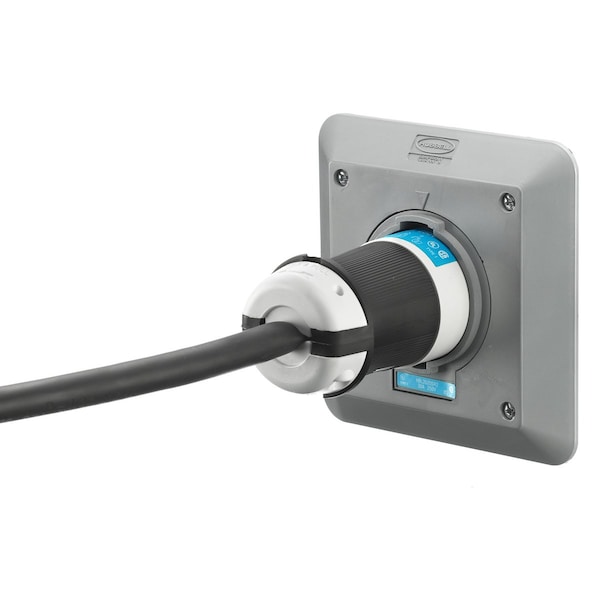

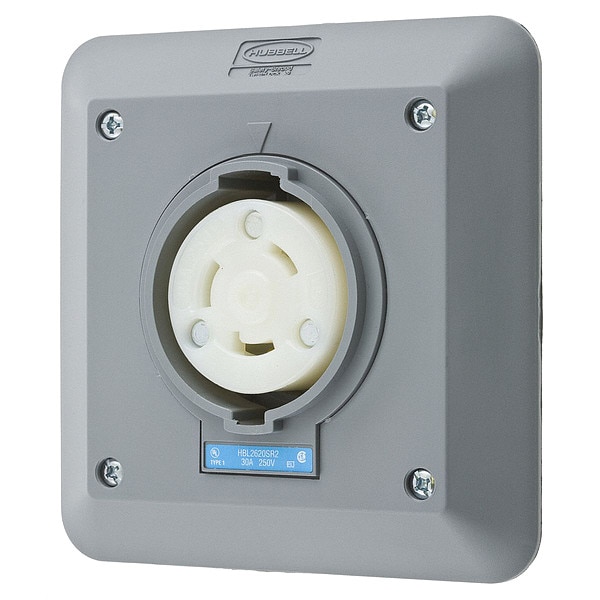

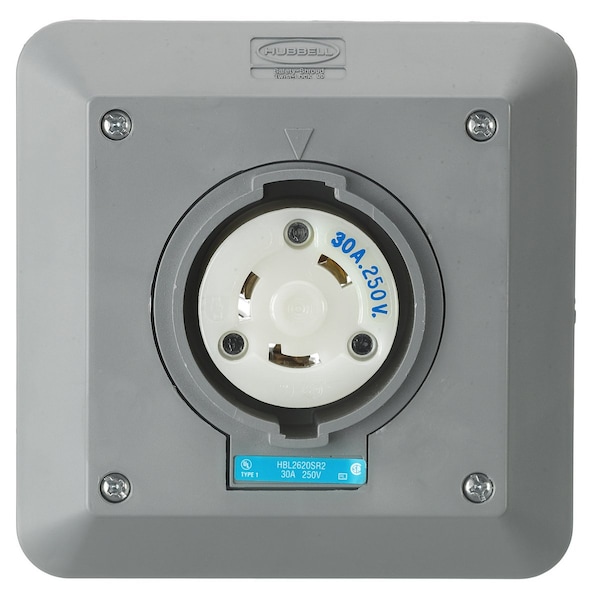

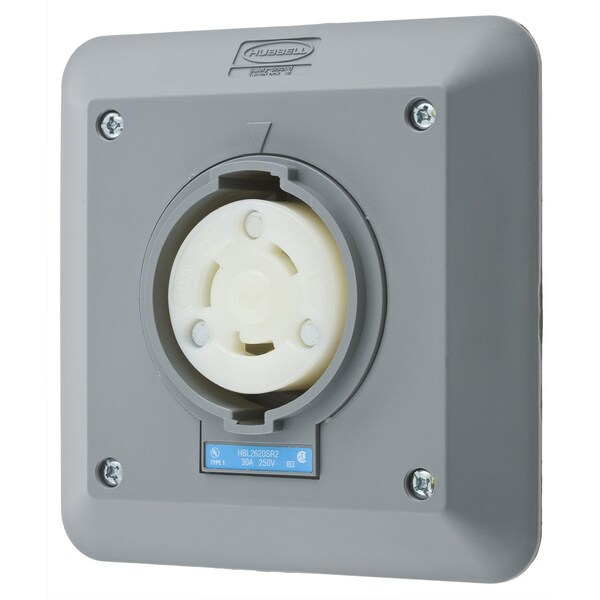

30A Twist-Lock Receptacle 2P 3W 250VAC L6-30R GY
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L6-30 |
| Voltage | 250V AC |
| Amps | 30 |
| Color | Gray |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Shrouded |
| Wiring Style | Standard |
| Mounting Type | Semi Flush Mount |
| Material | Impact Modified PBT |
| IP Rating | IP20 |
| NEMA Rating | 12, 4X |
| Special Features | Corrosion resistant |
| HP | 2.0 |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Grade | Industrial |
| Polarized | Yes |
| Cover Type | No Cover |
| Housing Color | White, Gray |
| Current Rating | 30 A |
| Housing Material | Valox |
| For Environment | Dry |
| Resistance Properties | Corrosion Resistant, Impact Resistant |
| For Location | Indoor |
| Market | Industrial |
| Connection Orientation | Straight |
| Number of Gangs | 2 |
| Minimum Operating Temperature | -40 Degrees C |
| UL 94 Flammability Rating | V-2 |
| Flange Type | Non-Flanged |
| Grounding | Grounded |
| Contact Material | Brass |
| Wire Connection Type | Screw Terminals |
| Maximum Wire Size | 8 AWG |
| Horsepower Rating | 2 HP |
| AFCI | No |
| Minimum Wire Size | 16 AWG |
| Shrouded | Yes |
| Voltage Rating | 250V AC |
| Flange Width | Not Applicable |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | L6-30R |
| Flange Height | Not Applicable |
| Flange Diameter | Not Applicable |
| Maximum Operating Temperature | 75 deg C |
| Lock Type | Twist-lock |
| Spring Material | .031" Brass |
| Wire Size | #10 AWG |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Weight (Lbs.) | 0.55 |
| Flange Material | Gray Valox 357U |
| Flammability | VO or better |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Mount Type | Flush |
| Package Quantity | 1 |
