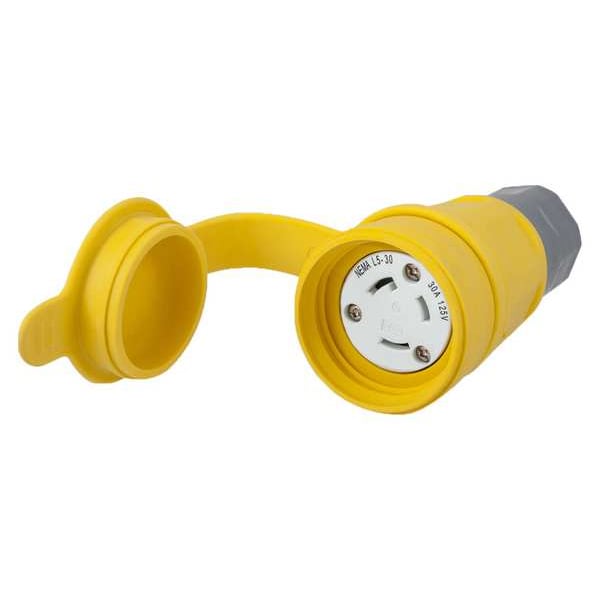

30A Watertight Locking Connector 2P 3W 125VAC L5-30R
| Item - Plugs and Receptacles | Watertight Locking Connector |
|---|---|
| Item | Watertight Locking Connector |
| Amps - Plugs and Receptacles | 30 |
| NEMA Plug Configuration - Plugs and Receptacles | L5-30R |
| Amps | 30 |
| Voltage - Plugs and Receptacles | 125V AC |
| Voltage | 125VAC |
| NEMA Configuration | L5-30 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Yellow |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Color | Yellow |
| Grade - Plugs and Receptacles | Industrial |
| Corrosion Resistant | Yes |
| NEMA Rating | 4, 4X, 6, 6P |
| IP Rating | IP69K |
| Antimicrobial | No |
| Phase | Single |
| Special Features | Corrosion resistant |
| Power Indicator | No |
| Standards | ANSI |
| Material | Thermoplastic Elastomer, Valox |
| HP | 2.0 |
| Grade | Industrial/Commercial |
| Cord Size | 3/8 to 1-1/8 in |
| Body Material | Thermoplastic Elastomer |
| Overall Length | 2.77 in |
| Outside Diameter | 2.77 in |
| Contact Material | Nickel Plated Brass |
| Current Rating | 30 A |
| Cap Type | Press-On Cap |
| Minimum Wire Size | 18 AWG |
| NEMA Enclosure Rating | 4X, 4, 12, 6, 6P |
| Wire Connection Type | Screw Terminals |
| Housing Color | Yellow |
| Connection Orientation | Straight |
| Midget Locking | No |
| Housing Material | Thermoplastic Elastomer |
| NEMA Receptacle Configuration | L5-30R |
| Horsepower Rating | 2 HP |
| Minimum Operating Temperature | -40 deg C |
| Power Indicating Light | No |
| For Minimum Cable Diameter | 3/8 in |
| Resistance Properties | Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant |
| UL 94 Flammability Rating | HB |
| Market | Industrial |
| Shrouded | Yes |
| Voltage Rating | 125V AC |
| Maximum Wire Size | 8 AWG |
| Maximum Operating Temperature | 60 deg C |
| For Maximum Cable Diameter | 1 in |
| Dielectric Strength | 2,500 V AC |
| Retainer Material | Clear Polycarbonate |
| Temp. Rise | 30°C |
| Bushing Material | Black Elastomer |
| UV Resistance | All Exposed Materials are UV Stabilized |
| Operating Temp. | -40 to 60°C |
| Type | Connector Body |
| Height | 5.67 in |
| Length | 2.77 in |
| Width | 2.77 in |
| Item Type | Twist-Lock® Connector |
| Performance | Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4) |
| Wire Size | Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S |
| Current / Amperage Rating | 30 A |
| Voltage Rating Description | 125 V |
| Amperage Rating | 30 A |
| Dimensions | 2.77 in x 2.77 in x 5.67 in |
| Industry Standard(s) | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Package Quantity | 1 |
