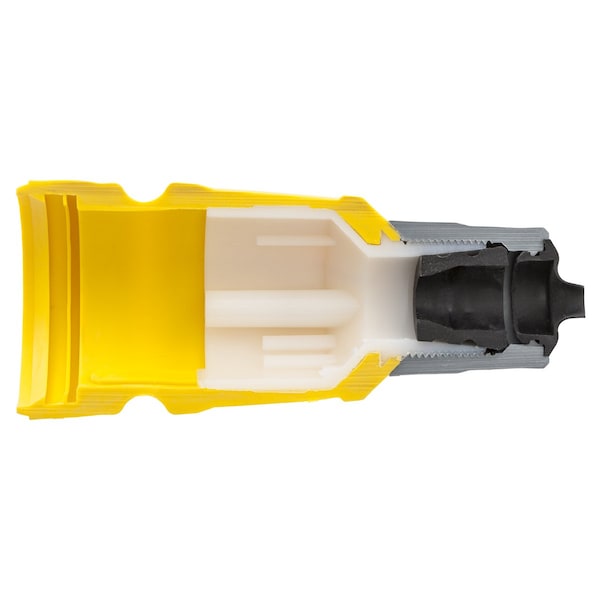

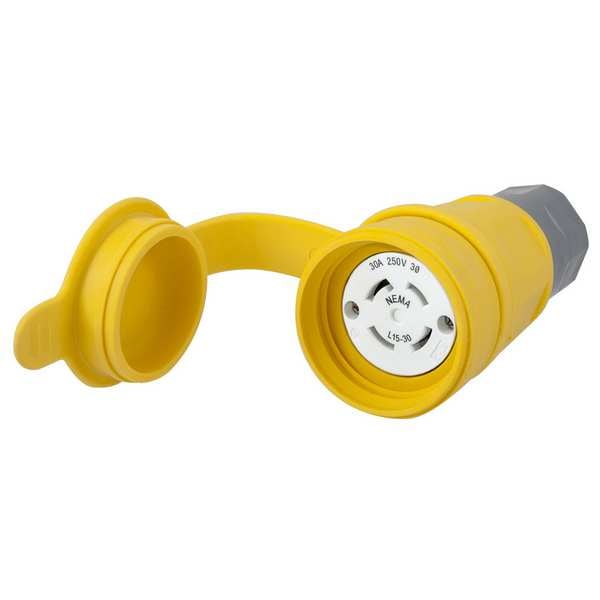

Conector bloqueable a prueba de agua de 30 amperios 3 polos 4 cables 250VAC L15-30R.
| Item | Watertight Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Watertight Locking Connector |
| Amps - Plugs and Receptacles | 30 |
| NEMA Plug Configuration - Plugs and Receptacles | L15-30R |
| Amps | 30 |
| Voltage | 250VAC |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Configuration | L15-30 |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Yellow |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Color | Yellow |
| Grade - Plugs and Receptacles | Industrial |
| NEMA Rating | 4, 4X, 6, 6P |
| Antimicrobial | No |
| IP Rating | IP69K |
| Corrosion Resistant | Yes |
| Material | Thermoplastic Elastomer, Valox |
| Grade | Industrial/Commercial |
| Power Indicator | No |
| Standards | ANSI |
| Phase | Three |
| HP | 3.0 |
| Special Features | Corrosion resistant |
| Cord Size | 3/8 to 1-1/8 in |
| Body Material | Thermoplastic Elastomer |
| Outside Diameter | 2.77 in |
| Overall Length | 2.77 in |
| Wire Connection Type | Screw Terminals |
| Contact Material | Nickel Plated Brass |
| For Minimum Cable Diameter | 3/8 in |
| NEMA Enclosure Rating | 4X, 4, 12, 6, 6P |
| Horsepower Rating | 3 HP |
| Housing Color | Yellow |
| Maximum Wire Size | 8 AWG |
| Connection Orientation | Straight |
| Current Rating | 30 A |
| Voltage Rating | 250V AC |
| Market | Industrial |
| Power Indicating Light | No |
| For Maximum Cable Diameter | 1 in |
| Maximum Operating Temperature | 60 deg C |
| Shrouded | Yes |
| Resistance Properties | Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant |
| Minimum Wire Size | 18 AWG |
| Housing Material | Thermoplastic Elastomer |
| UL 94 Flammability Rating | HB |
| Midget Locking | No |
| Minimum Operating Temperature | -40 deg C |
| Cap Type | Press-On Cap |
| NEMA Receptacle Configuration | L15-30R |
| Dielectric Strength | 2,500 V AC |
| Bushing Material | Black Elastomer |
| Retainer Material | Clear Polycarbonate |
| Temp. Rise | 30°C |
| UV Resistance | All Exposed Materials are UV Stabilized |
| Operating Temp. | -40 to 60°C |
| Package Quantity | 1 |
