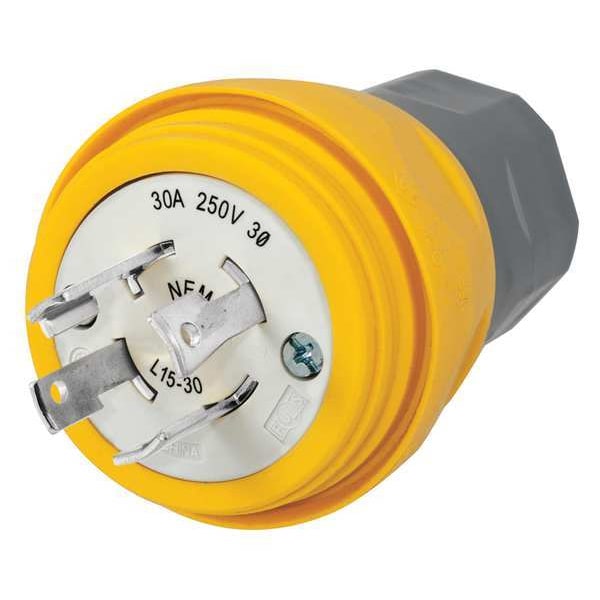

Enchufe de bloqueo estanco de 30 amperes, 3 polos/4 cables, 250VCA, L15-30P amarillo.
| Item - Plugs and Receptacles | Watertight Locking Plug |
|---|---|
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 30 |
| NEMA Plug Configuration - Plugs and Receptacles | L15-30P |
| Voltage - Plugs and Receptacles | 250V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Antimicrobial | No |
| Corrosion Resistant | No |
| HP | 3.0 |
| NEMA Configuration | L15-30 |
| Color | Yellow |
| Cord Size | 3/8 to 1-1/8 in |
| Amps | 30 |
| Item | Watertight Locking Plug |
| Special Features | Moisture, Dust and Weather Resistant |
| Standards | ANSI, NEMA WD-1 and WD-6 |
| Grade | Industrial |
| NEMA Rating | 4, 4X, 6, 6P |
| Color - Plugs and Receptacles | Yellow |
| Material | Thermoplastic Elastomer, Valox |
| IP Rating | IP69K |
| Voltage | 250VAC |
| Outside Diameter | 2.77 in |
| Overall Length | 2.77 in |
| NEMA Plug Configuration | L15-30P |
| Maximum Operating Temperature | 60 deg C |
| Body Length | 2.77 in |
| Market | Industrial |
| Minimum Operating Temperature | -40 deg C |
| Polarized | Yes |
| Blade Material | Nickel-Plated Brass |
| Horsepower Rating | 3 HP |
| For Minimum Cable Diameter | 3/8 in |
| For Maximum Cable Diameter | 1 in |
| Current Rating | 30 A |
| Number of Blades | 4 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Yellow |
| Resistance Properties | Chemical Resistant, Impact Resistant, Watertight |
| Connection Orientation | Straight |
| Shrouded | No |
| Housing Material | Thermoplastic Elastomer |
| Voltage Rating | 250V AC |
| Retainer Material | Clear Polycarbonate |
| Bushing Material | Black Elastomer |
| UV Resistance | All Exposed Materials are UV Stabilized |
| Temp. Rise | 30°C |
| Body Material | Thermoplastic Elastomer |
| Dielectric Strength | 2,500 V AC |
| Contact Material | Nickel Plated Brass |
| Operating Temp. | -40 to 60°C |
| Package Quantity | 1 |
