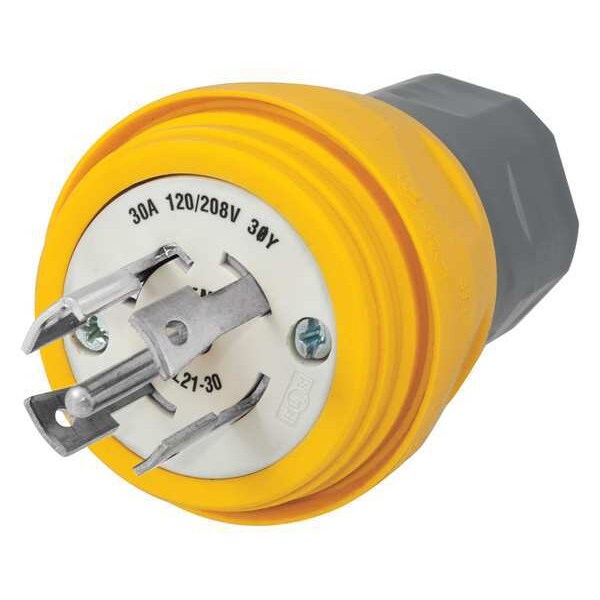

30A Watertight Locking Plug 4P 5W 120/208VAC
| Number of Poles | 4 |
|---|---|
| Number of Wires | 5 |
| Amps | 30 |
| NEMA Rating | 4, 4X, 6, 6P |
| Antimicrobial | No |
| IP Rating | IP69K |
| Color | Yellow |
| HP | 3.0 |
| Cord Size | 0.325 to 7/8 in |
| Phase | Three |
| Voltage - Plugs and Receptacles | 120/208V AC |
| Grade - Plugs and Receptacles | Industrial |
| Grade | Industrial |
| Special Features | Moisture, Dust and Weather Resistant |
| Item | Watertight Locking Plug |
| Standards | ANSI, NEMA WD-1 and WD-6 |
| NEMA Plug Configuration - Plugs and Receptacles | L21-30P |
| Amps - Plugs and Receptacles | 30 |
| Voltage | 120/208VAC |
| Item - Plugs and Receptacles | Watertight Locking Plug |
| Material | Thermoplastic Elastomer, Valox |
| Color - Plugs and Receptacles | Yellow |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Corrosion Resistant | No |
| Wiring Style | Standard |
| Housing Material | Thermoplastic Elastomer |
| Wire Connection Type | Screw Terminals |
| Current Rating | 30 A |
| Horsepower Rating | 3 HP |
| Overall Length | 2.77 in |
| Voltage Rating | 120/208V AC |
| Number of Blades | 5 |
| For Minimum Cable Diameter | 3/8 in |
| Minimum Operating Temperature | -40 deg C |
| Shrouded | No |
| Polarized | Yes |
| Connection Orientation | Straight |
| Market | Industrial |
| Blade Material | Nickel-Plated Brass |
| NEMA Plug Configuration | L21-30P |
| Housing Color | Yellow |
| Outside Diameter | 2.77 in |
| For Maximum Cable Diameter | 1 in |
| Body Length | 2.77 in |
| Resistance Properties | Chemical Resistant, Impact Resistant, Watertight |
| Maximum Operating Temperature | 60 deg C |
| Bushing Material | Black Elastomer |
| Body Material | Thermoplastic Elastomer |
| UV Resistance | All Exposed Materials are UV Stabilized |
| Temp. Rise | 30°C |
| Retainer Material | Clear Polycarbonate |
| Dielectric Strength | 2,500 V AC |
| Contact Material | Nickel Plated Brass |
| Operating Temp. | -40 to 60°C |
| Wire Size | Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S |
| Length | 2.77 in |
| Amperage Rating | 30 A |
| Voltage Rating Description | 3-Phase Y 120/208 VAC |
| Type | Plugs |
| Dimensions | 2.77 in x 2.77 in x 3.94 in |
| Industry Standard(s) | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Width | 2.77 in |
| Performance | Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4) |
| Item Type | Plug |
| Height | 3.94 in |
| Current / Amperage Rating | 30 A |
| Package Quantity | 1 |
