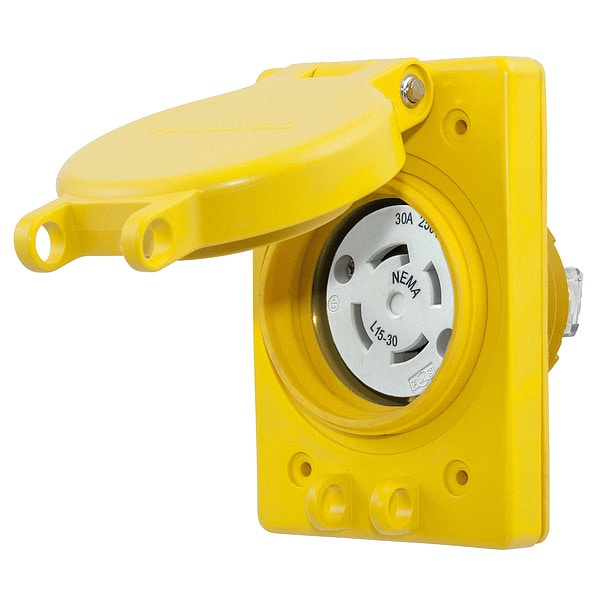

30A Watertight Locking Receptacle 3P 4W 250VAC
| Item | Watertight Locking Receptacle |
|---|---|
| NEMA Configuration | L15-30 |
| Voltage | 250V AC |
| Amps | 30 |
| Color | Yellow |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Standards | ANSI, NEMA WD-1 and WD-6 |
| NEMA Rating | 3R, 3RX, 4, 4X, 6, 6P |
| Mounting Type | Flush Mount |
| Special Features | With Cover |
| IP Rating | IP69K |
| Material | Nylon |
| Grade | Industrial |
| Contact Material | Nickel Plated Brass |
| Maximum Wire Size | 8 AWG |
| Wire Connection Type | Screw Terminals |
| Flange Shape | Rectangular |
| Insulation Material | Elastomer |
| Number of Gangs | 1 |
| Shrouded | No |
| Minimum Wire Size | 18 AWG |
| Voltage Rating | 250V AC |
| Maximum Operating Temperature | 60 deg C |
| Minimum Operating Temperature | -40 deg C |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| Current Rating | 30 A |
| Market | Industrial |
| Mount Type | Flush |
| NEMA Enclosure Rating | 4X, 4, 12, 6, 6P |
| AFCI | No |
| Resistance Properties | Impact Resistant, Watertight |
| Flange Type | Flanged |
| NEMA Receptacle Configuration | L15-30R |
| Connection Orientation | Straight |
| Polarized | Yes |
| Cord Size | 18 to 8 AWG |
| Height | 2.92 in |
| Width | 3.1 in |
| Length | 4.56 in |
| Wire Size | #18 AWG to #8 AWG |
| Dimensions | 4.56 in x 3.1 in x 2.92 in |
| Industry Standard(s) | IP69K In Use Meets NEMA WD-1, WD-6 And ANSI Standards |
| Current / Amperage Rating | 30 A |
| Type | Receptacle |
| Voltage Rating Description | 3 Phase 250 VAC |
| Amperage Rating | 30 A |
| Performance | Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous |
| Item Type | Receptacle |
| Cover Type | Flip-Up Cover |
| Package Quantity | 1 |
