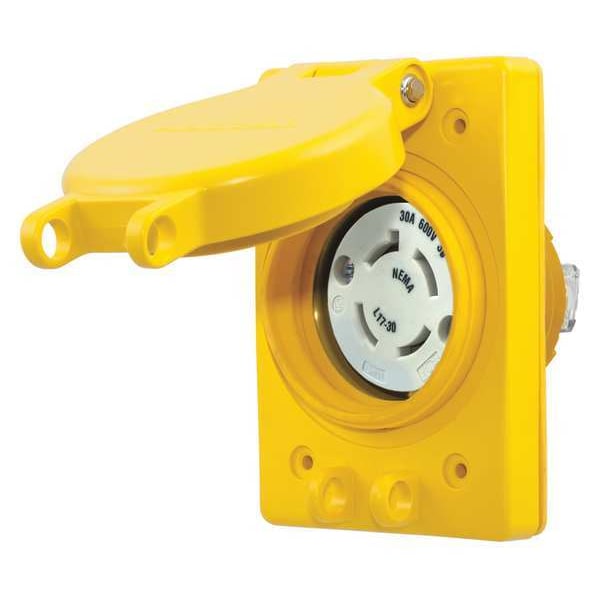

30A Watertight Locking Receptacle 3P 4W 600VAC
| Item | Watertight Locking Receptacle |
|---|---|
| NEMA Configuration | L17-30 |
| Voltage | 600V AC |
| Amps | 30 |
| Color | Yellow |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| IP Rating | IP69K |
| Mounting Type | Flush Mount |
| NEMA Rating | 3R, 3RX, 4, 4X, 6, 6P |
| Grade | Industrial |
| Standards | ANSI, NEMA WD-1 and WD-6 |
| Material | Nylon |
| Special Features | With Cover |
| Flange Type | Flanged |
| Insulation Material | Elastomer |
| Housing Color | Yellow |
| Market | Industrial |
| NEMA Enclosure Rating | 4X, 4, 12, 6, 6P |
| Minimum Wire Size | 18 AWG |
| AFCI | No |
| Resistance Properties | Impact Resistant, Watertight |
| Voltage Rating | 600V AC |
| Contact Material | Nickel Plated Brass |
| Number of Gangs | 1 |
| Current Rating | 30 A |
| Shrouded | No |
| Maximum Operating Temperature | 60 deg C |
| NEMA Receptacle Configuration | L17-30R |
| Maximum Wire Size | 8 AWG |
| Wire Connection Type | Screw Terminals |
| Polarized | Yes |
| Housing Material | Thermoplastic Elastomer |
| Connection Orientation | Straight |
| Flange Shape | Rectangular |
| Mount Type | Flush |
| Minimum Operating Temperature | -40 deg C |
| Cord Size | 18 to 8 AWG |
| Wire Size | #18 AWG to #8 AWG |
| Voltage Rating Description | 600 VAC |
| Current / Amperage Rating | 30 A |
| Width | 3.1 in |
| Height | 2.92 in |
| Dimensions | 4.56 in x 3.1 in x 2.92 in |
| Amperage Rating | 30 A |
| Length | 4.56 in |
| Item Type | Receptacle |
| Type | Receptacle |
| Cover Type | Flip-Up Cover |
| Package Quantity | 1 |
