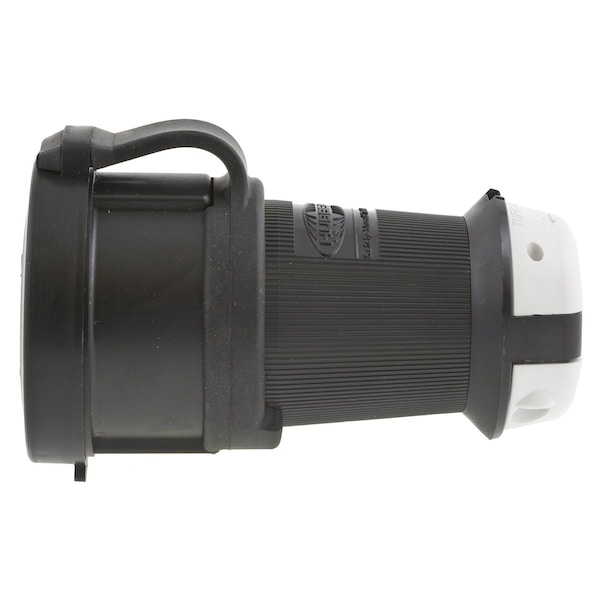

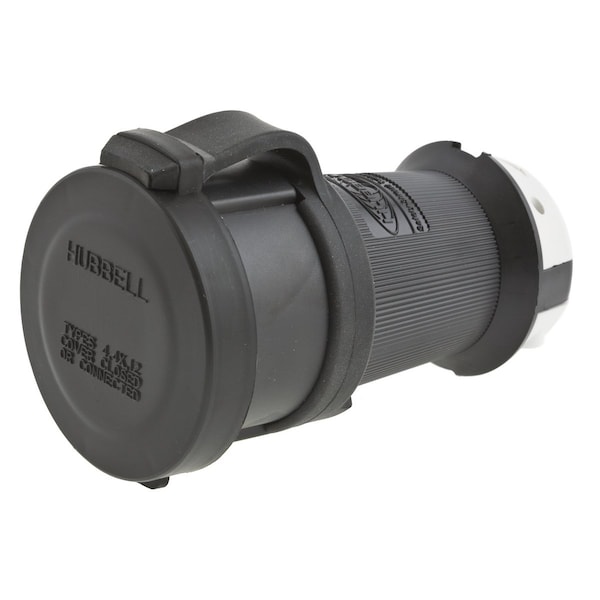

30A Watertight Twist-Lock Connector 2P 3W 250VAC L6-30R
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item - Plugs and Receptacles | Watertight Locking Connector |
| Item | Watertight Locking Connector |
| Amps - Plugs and Receptacles | 30 |
| Amps | 30 |
| NEMA Plug Configuration - Plugs and Receptacles | L6-30R |
| Voltage - Plugs and Receptacles | 250V AC |
| Voltage | 250VAC |
| NEMA Configuration | L6-30 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black, White |
| Shrouded / Non-Shrouded | Shrouded |
| Color | Black, White |
| Grade - Plugs and Receptacles | Industrial |
| Phase | Single |
| Cord Size | 0.36 to 0.93 in |
| Antimicrobial | No |
| Standards | CSA Certified Type 4, 4X and Type 12, UL Listed |
| Corrosion Resistant | No |
| HP | 2.0 |
| Power Indicator | No |
| Material | Impact Modified PBT |
| NEMA Rating | 12, 4, 4X |
| Grade | Industrial/Commercial |
| IP Rating | IP66 |
| Minimum Wire Size | 16 AWG |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Overall Length | 4.4 in |
| NEMA Receptacle Configuration | L6-30R |
| For Minimum Cable Diameter | 0.36 in |
| Current Rating | 30 A |
| Insulation Material | Thermoplastic |
| Housing Material | Valox |
| Maximum Operating Temperature | 75 deg C |
| Housing Color | Black, White |
| Cap Type | Press-On Cap |
| Outside Diameter | 2-3/4 in |
| Shrouded | Yes |
| For Maximum Cable Diameter | 0.93 in |
| Contact Material | Brass |
| Connection Orientation | Straight |
| Grounding | Grounded |
| NEMA Enclosure Rating | 4X, 4, 12 |
| Power Indicating Light | No |
| Maximum Wire Size | 8 AWG |
| UL 94 Flammability Rating | V-0 |
| Market | Industrial |
| Minimum Operating Temperature | -40 deg C |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Horsepower Rating | 2 HP |
| Midget Locking | No |
| Product Type | Shrouded Watertight |
| Screw Material | Stainless Steel |
| Weight | 0.55 lb |
| Retainer Material | Clear Polycarbonate |
| Flammability | UL 94 V0 |
| Dielectric Strength | 2,000 V |
| Temp. Rise | 30°C |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
