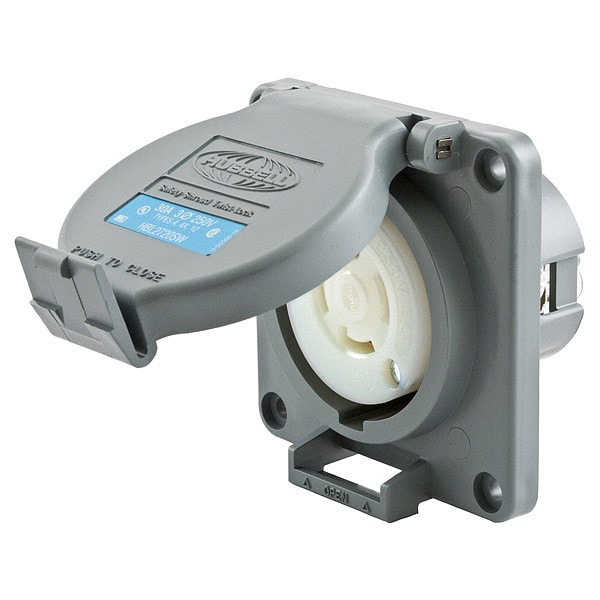

30A Watertight Twist-Lock Receptacle 3P 4W 250VAC
| Item | Watertight Locking Receptacle |
|---|---|
| NEMA Configuration | L15-30 |
| Voltage | 250V AC |
| Amps | 30 |
| Color | Gray |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Shrouded |
| Wiring Style | Standard |
| Mounting Type | Flush Mount |
| Material | Nylon |
| NEMA Rating | 12, 4, 4X |
| Special Features | With Locking Cover |
| Grade | Industrial |
| IP Rating | IP69K |
| Standards | CSA Certified Type 4 4X and Type 12, UL Listed |
| HP | 3.0 |
| NEMA Receptacle Configuration | L15-30R |
| Flange Diameter | Not Applicable |
| Grounding | Grounded |
| Housing Color | Gray |
| UL 94 Flammability Rating | V-2 |
| Wire Connection Type | Screw Terminals |
| Contact Material | Brass |
| Market | Industrial |
| Maximum Operating Temperature | 75 deg C |
| Connection Orientation | Straight |
| Mount Type | Flush |
| Housing Material | Valox |
| Minimum Operating Temperature | -40 deg C |
| Cover Type | Locking Flip-Up Cover |
| AFCI | No |
| Resistance Properties | Moisture Resistant, Watertight |
| Horsepower Rating | 3 HP |
| Voltage Rating | 250V AC |
| Flange Width | Not Applicable |
| Current Rating | 30 A |
| Flange Type | Non-Flanged |
| Number of Gangs | 1 |
| NEMA Enclosure Rating | 4X, 4, 12 |
| Polarized | Yes |
| Flange Height | Not Applicable |
| Minimum Wire Size | 16 AWG |
| Shrouded | Yes |
| Maximum Wire Size | 8 AWG |
| Weight | 0.65 lb |
| Cord Size | 16 to 8 AWG |
| Gasket Material | Closed-Cell Neoprene Foam |
| Screw Material | 302/304 Stainless Steel |
| Flammability | UL 94 V0 (Receptacles and Inlets), HB or Better (Plugs and Connectors) |
| Temp. Rise | 30°C |
| Dielectric Strength | 2,000 V |
| Flange Material | Gray Valox |
| Retainer Material | Clear Polycarbonate |
| Operating Temp. | -40 to 75°C |
| Wire Size | #16 AWG to #8 AWG |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Watertight |
| Connectivity | Screw Terminals |
| Type | Receptacle |
| Length | 3-3/4 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Width | 3-3/4 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Voltage Rating Description | 3 Phase 250 VAC |
| Current / Amperage Rating | 30 A |
| Horsepower - Maximum | 3 |
| Height | 2.9 in |
| Amperage Rating | 30 A |
| Application | Heavy Duty Industrial Shrouded Watertight |
| Display Size | Standard Sized Product |
| Item Type | Receptacle |
| Dimensions | 3-3/4 in x 3-3/4 in x 2.9 in |
| Industry Standard(s) | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Material - Mounting Hardware | Screw Mounting |
| Package Quantity | 1 |
