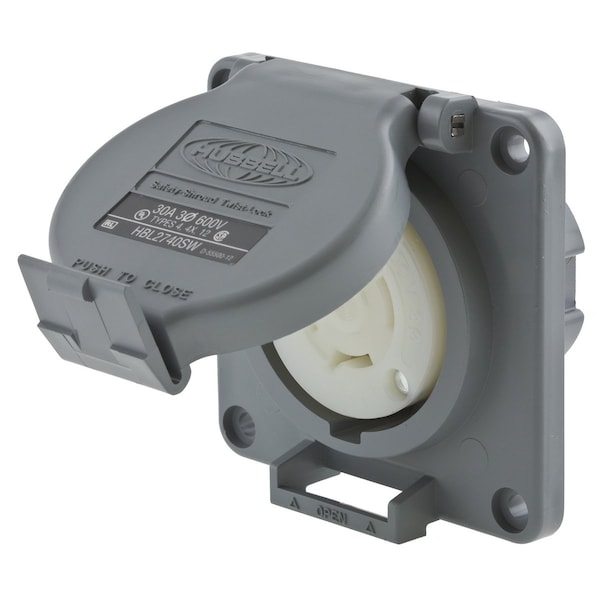

30A Watertight Twist-Lock Receptacle 3P 4W 600VAC
| Item | Watertight Locking Receptacle |
|---|---|
| NEMA Configuration | L17-30 |
| Voltage | 600V AC |
| Amps | 30 |
| Color | Gray |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Shrouded |
| Wiring Style | Standard |
| Material | Nylon |
| HP | 10.0 |
| Special Features | With Locking Cover |
| Standards | CSA Certified Type 4 4X and Type 12, UL Listed |
| Mounting Type | Flush Mount |
| Grade | Industrial |
| IP Rating | IP69K |
| NEMA Rating | 12, 4, 4X |
| Horsepower Rating | 10 HP |
| Minimum Operating Temperature | -40 deg C |
| Housing Color | Gray |
| Market | Industrial |
| Flange Diameter | Not Applicable |
| Flange Height | Not Applicable |
| Resistance Properties | Moisture Resistant, Watertight |
| Housing Material | Valox |
| Minimum Wire Size | 16 AWG |
| Polarized | Yes |
| Maximum Wire Size | 8 AWG |
| Shrouded | Yes |
| Number of Gangs | 1 |
| Grounding | Grounded |
| Mount Type | Flush |
| Wire Connection Type | Screw Terminals |
| Flange Width | Not Applicable |
| AFCI | No |
| Contact Material | Brass |
| NEMA Receptacle Configuration | L17-30R |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | V-2 |
| NEMA Enclosure Rating | 4X, 4, 12 |
| Cover Type | Locking Flip-Up Cover |
| Maximum Operating Temperature | 75 deg C |
| Current Rating | 30 A |
| Voltage Rating | 600V AC |
| Flange Type | Non-Flanged |
| Retainer Material | Clear Polycarbonate |
| Flange Material | Gray Valox |
| Gasket Material | Closed-Cell Neoprene Foam |
| Weight | 0.65 lb |
| Cord Size | 16 to 8 AWG |
| Temp. Rise | 30°C |
| Flammability | UL 94 V0 |
| Screw Material | 302/304 Stainless Steel |
| Dielectric Strength | 2,000 V |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
