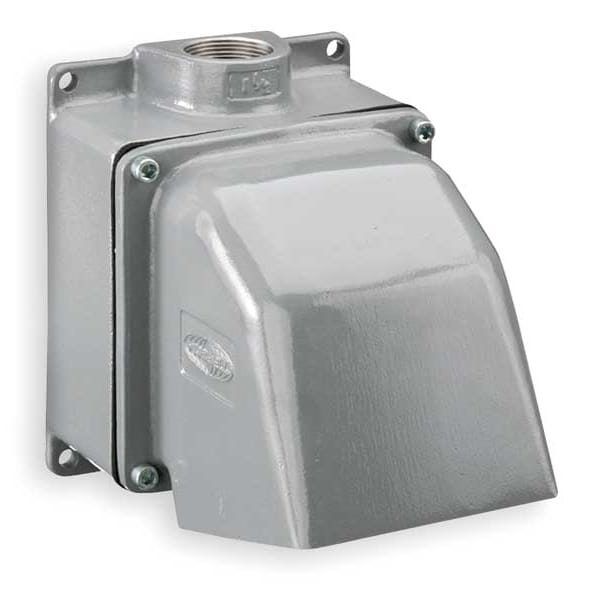

4-Way Angle Back Box, 60/100A, 1-1/2" Hub
| Item | 4-Way Angle Back Box |
|---|---|
| Box Type | Feed Through |
| Body Material - Pin and Sleeve | Cast Aluminum |
| Type | Angled |
| Amps - Plugs and Receptacles | 100/60 A |
| Amps | 0.6 |
| Angle | 15 Degrees |
| Hub | 1-1/2 in |
| Length | 9-3/4 in |
| Material | Aluminum |
| Width | 6-3/4 in |
| Use With | IEC 309 Pin and Sleeve Devices |
| Includes | Mounting Screws |
| Standards | UL Raintight and External Icing Test |
| Length (Straight Wireway) | 9-3/4 in |
| Number of Gangs | 1 |
| Hub Type | Dead End |
| For Use With | IEC Pin and Sleeve Devices |
| Overall Width | 9-3/4 in |
| Hub Diameter | 1-1/2 in |
| Overall Height | 8-1/2 in |
| Mount Type | Surface |
| Material Type | Metallic |
| Overall Length | 6-3/4 in |
| Housing Color | Gray |
| Box Angle | Straight |
| Current Rating | 0.6 A |
| NEMA Enclosure Rating | 4X |
| Compatible with Series | Watertight |
| IP Rating | IP67 |
| Package Quantity | 1 |
