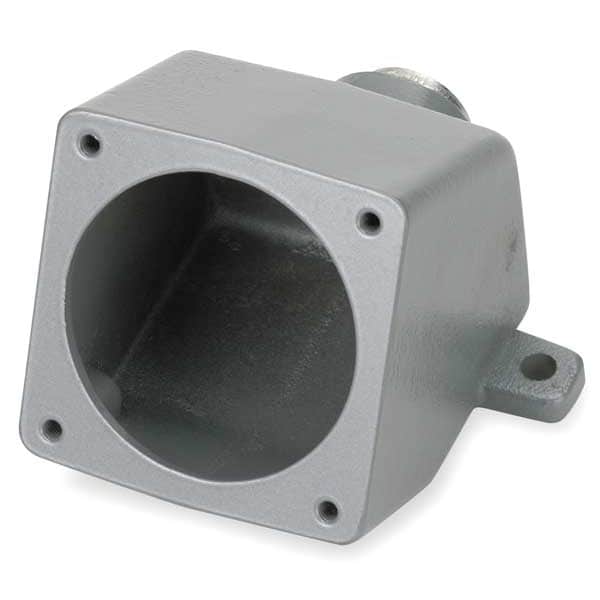

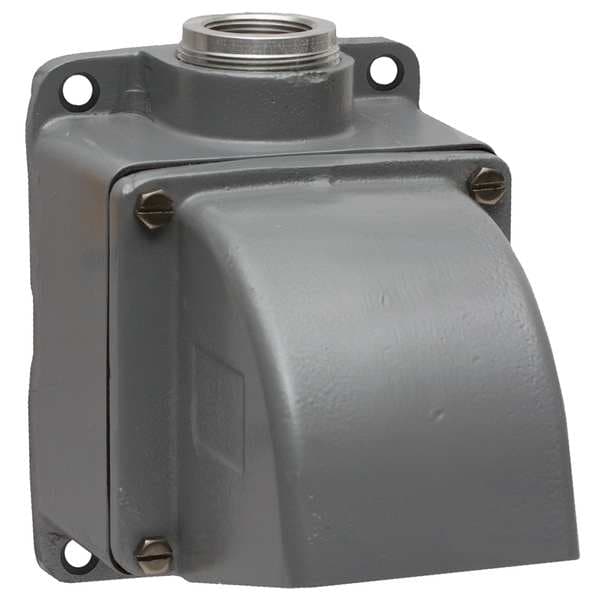

4-Way Angle Back Box, 60/100A, 1-1/4" Hub
| Item | 4-Way Angle Back Box |
|---|---|
| Box Type | Dead End |
| Type | Metallic |
| Amps | 0.6 |
| Angle | 15 Degrees |
| Hub | 1-1/4 in |
| Length | 7 in |
| Material | Aluminum |
| Width | 6-1/8 in |
| Use With | Insulgrip Pin and Sleeve Devices |
| Package Quantity | 1 |
| Includes | Mounting Screws |
| Features | UV Stabilized |
| Standards | UL Listed |
| Length (Straight Wireway) | 7 in |
| Hub Type | Dead End |
| Overall Length | 9.8 in |
| Resistance Properties | Impact Resistant |
| Maximum Operating Temperature | 75 deg C |
| NEMA Enclosure Rating | 4X |
| Hub Diameter | 1-1/4 in |
| Compatible with Series | Insulgrip |
| UL 94 Flammability Rating | V-0, 5VA |
| Market | Industrial |
| Housing Color | Gray |
| Number of Gangs | 1 |
| Mount Type | Surface |
| Overall Height | 7.1 in |
| Material Type | Metallic |
| Overall Width | 6.7 in |
| Box Angle | 15 deg |
| Current Rating | 0.6 A |
| Minimum Operating Temperature | -40 deg C |
| For Use With | Insulgrip Pin and Sleeve Device |
| Operating Temp. Range | -40 to 75° C |
| IP Rating | IP67 |
| Industry Standard(s) | UL Listed |
| Number Of Outlets | Accepts 1-Device |
| Construction | Cast |
| Item Type | Mounting Box |
| Material - Mounting Hardware | Mounting Screws |
| Display Size | For 60 and 100 Amp Devices |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Operating Temperatures - Max. Continuous: 75° C Min. Continuous: -40° C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Knockouts | 1 1/4" NPT Hub |
| Style | 15 Degree |
| Series | Back Boxes and Adapters |
| Cable Entry | Through Hub |
| Application | Metallic |
