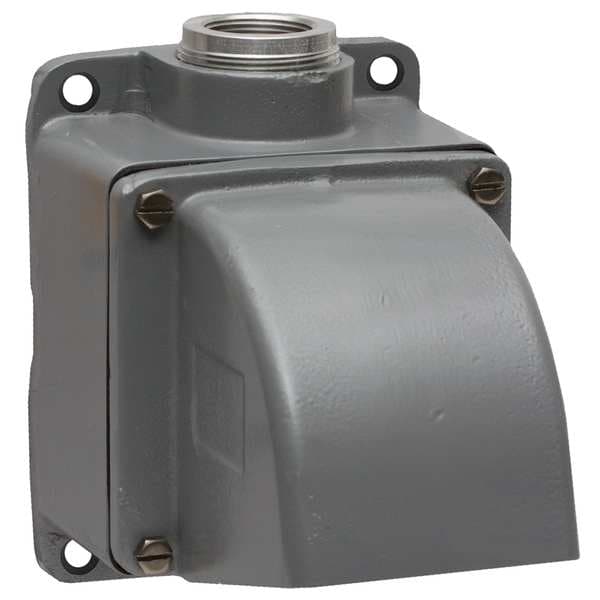

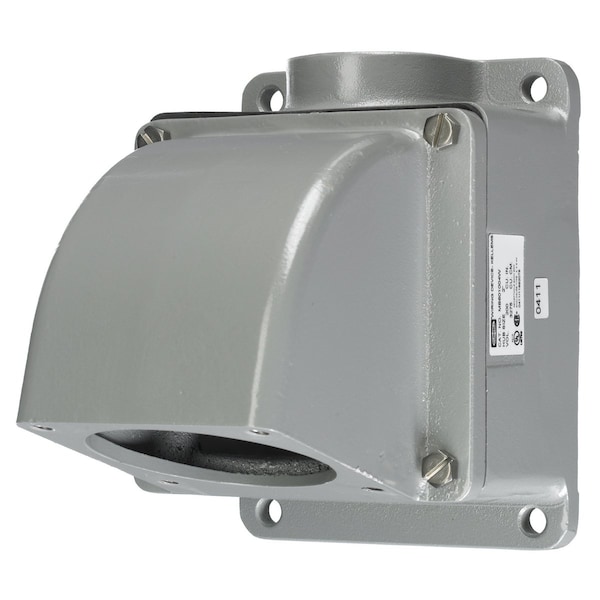

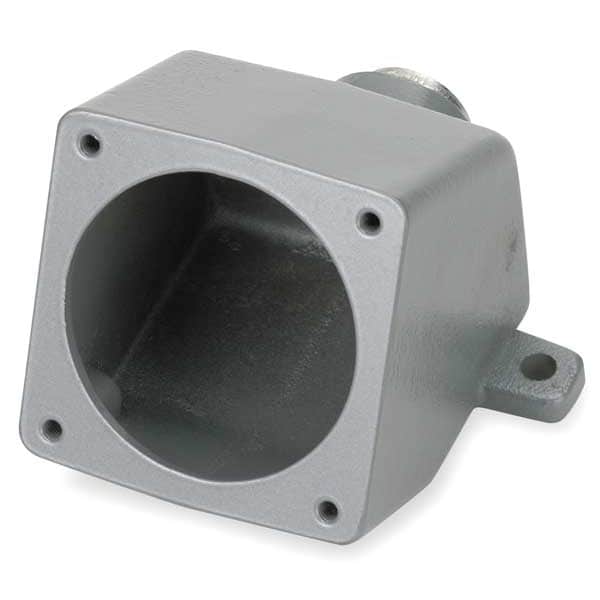

4-Way Angle Back Box, 60/100A, 2" Hub, 15
| Item | 4-Way Angle Back Box |
|---|---|
| Box Type | Feed Through |
| Type | Metallic |
| Amps | 0.6 |
| Angle | 15 Degrees |
| Hub | 2 in |
| Length | 7 in |
| Material | Aluminum |
| Width | 6-1/8 in |
| Includes | Mounting Screws |
| Use With | Insulgrip Pin and Sleeve Devices |
| Standards | UL Listed |
| Features | UV Stabilized |
| Length (Straight Wireway) | 7 in |
| Overall Height | 7.2 in |
| For Use With | Insulgrip Pin and Sleeve Device |
| Overall Length | 9.7 in |
| Hub Diameter | 2 in |
| UL 94 Flammability Rating | V-0, 5VA |
| Maximum Operating Temperature | 75 deg C |
| Hub Type | Dead End |
| Material Type | Metallic |
| Number of Gangs | 1 |
| Overall Width | 6.8 in |
| Box Angle | 15 deg |
| Current Rating | 0.6 A |
| Minimum Operating Temperature | -40 deg C |
| Compatible with Series | Insulgrip |
| NEMA Enclosure Rating | 4X |
| Housing Color | Gray |
| Resistance Properties | Impact Resistant |
| Mount Type | Surface |
| IP Rating | IP67 |
| Operating Temp. Range | -40 to 75° C |
| Package Quantity | 1 |
