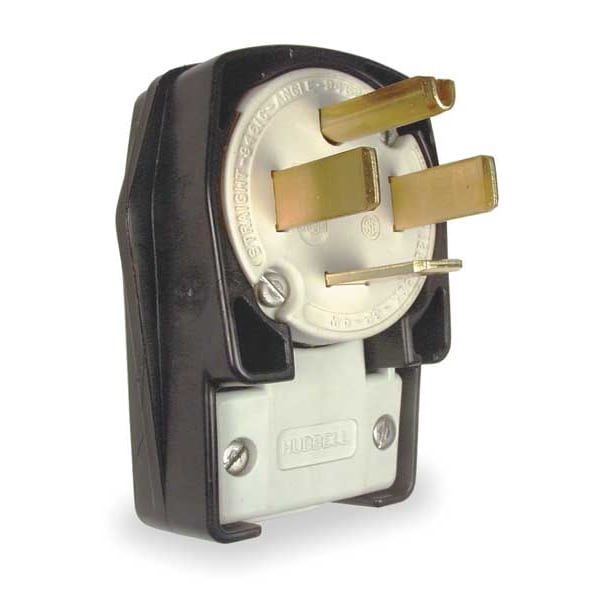

4 Wire Industrial Angle Straight Blade Plug 125/250VAC 60A
| Item - Plugs and Receptacles | Angle Straight Blade Plug |
|---|---|
| Item | Angle Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 60 A |
| Voltage - Plugs and Receptacles | 125/250V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 14-60P |
| Number of Wires | 4 |
| Phase - Plugs and Receptacles | 3 |
| Antimicrobial | No |
| Color | Black, White |
| Number of Poles | 3 |
| IP Rating | IP20 |
| HP | 2.0 Line to Neutral, 3.0 Line to Line |
| Standards | CSA Certified C22.2 No. 42 File 285, Guide RTRT Fed Spec WC596G, Meets WD-6 Requirements, UL 498 File E2186 |
| Special Features | Corrosion resistant |
| Grade | Industrial |
| Phase | Single |
| Voltage | 125/250VAC |
| Cord Size | 5/8 to 1.31 in |
| Corrosion Resistant | Yes |
| Color - Plugs and Receptacles | Black, White |
| Material | Nylon |
| Amps | 60 |
| Type | Plug |
| NEMA Rating | 14-60P |
| Number of Blades | 4 |
| For Maximum Cable Diameter | 1.31 in |
| Housing Color | Black |
| Polarized | Yes |
| For Minimum Cable Diameter | 5/8 in |
| Housing Material | Nylon |
| NEMA Plug Configuration | 14-60P |
| Grounding | Grounded |
| Current Rating | 60 A |
| Minimum Operating Temperature | -40 deg F |
| Connection Orientation | Angled |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 167 deg F |
| Maximum Wire Size | 4 AWG |
| Horsepower Rating | 3 HP |
| Minimum Wire Size | 12 AWG |
| Insulation Material | Nylon |
| Resistance Properties | Corrosion Resistant |
| Body Length | 3.38 in |
| Voltage Rating | 125/250V AC |
| Market | Industrial, Commercial |
| Ground Screw Material | 3/8" Allen Head, Plated Steel |
| Temp. Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Weight (Lbs.) | 0.85 |
| Ground Contact Blade Material | Brass |
| Terminal Screw Material | Steel - Zn plated |
| Box Terminals Material | Copper |
| Operating Temp. | Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Body Style | Angle |
| Blade Holder Material | Glass Reinforced PET |
| Retainer Material | Glass Reinforced PET |
| Flammability | UL 94 HB |
| Dielectric Strength | Withstands 2,000V minimum |
| Cord Clamp Material | Glass Reinforced Polyester |
| Contact Blades Material | .100" Brass |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Length | 3.38 in |
| Horsepower - Maximum | 3 |
| Amperage Rating | 60 A |
| Cord Range | 0.625"-1.310" |
| Width | 4-1/2 in |
| Current / Amperage Rating | 60 A |
| Industry Standard(s) | UL Listed To UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 Requirements, Certified To CSA, C22.2, No. 42 File 285 |
| Dimensions | 3.38 in x 4-1/2 in x 2.37 in |
| Wire Size | #12 AWG to #4 AWG |
| Voltage Rating Description | 125/250 V |
| Height | 2.37 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
