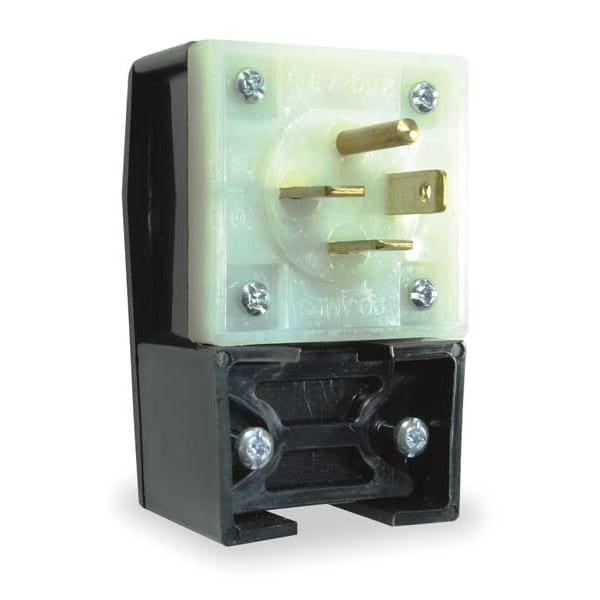

4 Wire Industrial Angle Straight Blade Plug 250VAC 20A
| Item - Plugs and Receptacles | Angle Straight Blade Plug |
|---|---|
| Item | Angle Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 15-20P |
| Number of Wires | 4 |
| Phase - Plugs and Receptacles | 3 |
| Antimicrobial | No |
| Color | Black, White |
| Number of Poles | 3 |
| Cord Size | 0.39 to 0.775 in |
| Grade | Industrial |
| Voltage | 250VAC |
| Amps | 20 |
| Corrosion Resistant | Yes |
| Color - Plugs and Receptacles | Black, White |
| Special Features | Corrosion resistant |
| Standards | CSA Certified, UL Listed |
| Phase | Three |
| NEMA Configuration | 15-20 |
| IP Rating | IP20 |
| Material | Nylon |
| HP | 3 |
| NEMA Rating | 15-20P |
| Connection Orientation | Angled |
| Insulation Material | Nylon |
| Horsepower Rating | 3 HP |
| Housing Material | Nylon |
| Number of Blades | 4 |
| Wire Connection Type | Screw Terminals |
| Polarized | Yes |
| NEMA Plug Configuration | 15-20P |
| Current Rating | 20 A |
| Housing Color | Black, White |
| For Minimum Cable Diameter | 0.39 in |
| Market | Industrial |
| Voltage Rating | 250V AC |
| Grounding | Grounded |
| Resistance Properties | Corrosion Resistant |
| For Maximum Cable Diameter | 0.775 in |
| Cord Clamp Material | Nylon |
| Retainer Material | Polycarbonate |
| Flammability | UL 94 HB or better. |
| Temp. Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Terminal Screw Material | Brass |
| Ground Screw Material | Steel |
| Ground Contact Blade Material | Brass |
| Contact Blades Material | .075" Brass |
| Blade Holder Material | Nylon |
| Body Style | Angle |
| Operating Temp. | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Dielectric Strength | Withstands 2,000V minimum |
| Weight (Lbs.) | 0.35 |
| Package Quantity | 1 |
