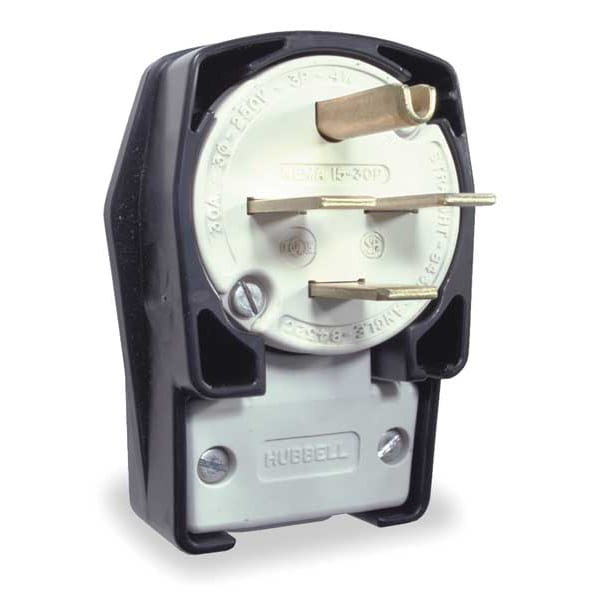

4 Wire Industrial Angle Straight Blade Plug 250VAC 30A
| Item - Plugs and Receptacles | Angle Straight Blade Plug |
|---|---|
| Item | Angle Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 30 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 15-30P |
| Number of Wires | 4 |
| Phase - Plugs and Receptacles | 3 |
| Antimicrobial | No |
| Color | Black, White |
| Number of Poles | 3 |
| Voltage | 250VAC |
| HP | 3 |
| Corrosion Resistant | Yes |
| Color - Plugs and Receptacles | Black, White |
| IP Rating | IP20 |
| Special Features | Corrosion resistant |
| Standards | CSA Certified, UL E1706 |
| Phase | Three |
| Material | Nylon |
| Amps | 30 |
| Cord Size | 5/8 to 1.31 in |
| NEMA Configuration | 15-30 |
| Grade | Industrial |
| Type | Plug |
| NEMA Rating | WD-6; 15-30P |
| Minimum Operating Temperature | -40 deg F |
| Voltage Rating | 250V AC |
| Connection Orientation | Angled |
| Maximum Operating Temperature | 167 deg F |
| Polarized | Yes |
| Wire Connection Type | Screw Terminals |
| Resistance Properties | Corrosion Resistant |
| Market | Industrial |
| Housing Material | Nylon |
| Insulation Material | Nylon |
| Maximum Wire Size | 4 AWG |
| Grounding | Grounded |
| Housing Color | Black, White |
| Horsepower Rating | 3 HP |
| UL 94 Flammability Rating | HB |
| Number of Blades | 4 |
| Minimum Wire Size | 12 AWG |
| Current Rating | 30 A |
| NEMA Plug Configuration | 15-30P |
| For Maximum Cable Diameter | 1.31 in |
| For Minimum Cable Diameter | 5/8 in |
| Box Terminals Material | Copper |
| Blade Holder Material | Glass Reinforced PET |
| Blade Material | Solid Brass |
| Cord Clamp Material | Glass Reinforced Polyester |
| Body Material | Impact Modified Nylon |
| Environment | Dry |
| Body Style | Angle |
| Weight (Lbs.) | 0.85 |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Dielectric Strength | Withstands 2000V per UL498 |
| Flammability | Rated HB or better UL94 |
| Contact Blades Material | .100" Brass |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Terminal Screw Material | Steel - Zn plated |
| Ground Screw Material | 3/8" Allen Head, Plated Steel |
| Retainer Material | Glass Reinforced PET |
| Ground Contact Blade Material | Brass |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current / Amperage Rating | 30 A |
| Performance | Electrical: Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage : Withstands 2,000V minimum Mechanical: Terminal Accommodation: #12 AWG through #4 AWG copper wire only Terminal Identification :Terminals identified in accordance with UL 498 and CSA Environmental: Flammability: UL 94 HB IP Suitability: IP20 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact) |
| Wire Size | #12 AWG to #4 AWG |
| Amperage Rating | 30 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | UL Listed File E1706 Certified to CSA |
| Voltage Rating Description | 250 VAC |
| Package Quantity | 1 |
