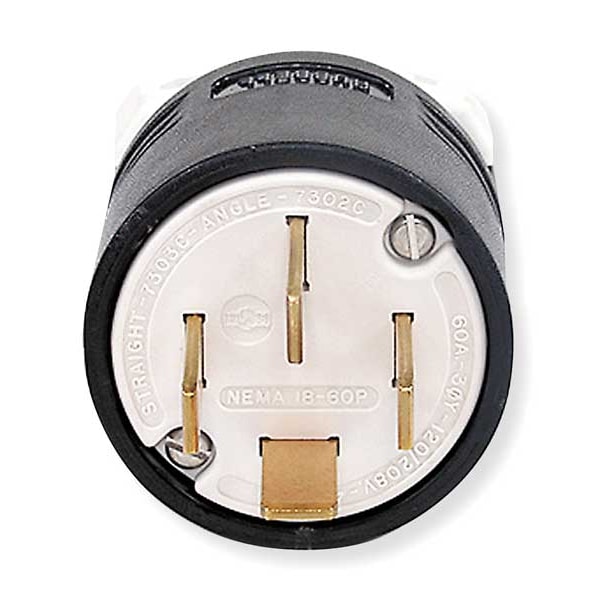

4 Wire Industrial Straight Blade Plug 120/208VAC 60A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 60 A |
| Voltage - Plugs and Receptacles | 120/208V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 18-60P |
| Number of Wires | 4 |
| Phase - Plugs and Receptacles | 3 |
| Antimicrobial | No |
| Color | Black |
| Number of Poles | 4 |
| HP | 7-1/2 |
| Cord Size | 5/8 to 1.31 in |
| Voltage | 120/208VAC |
| Standards | CSA Certified, UL E1706 |
| Color - Plugs and Receptacles | Black |
| Boot Code | C |
| Corrosion Resistant | Yes |
| Phase | Three |
| Amps | 60 |
| Material | Nylon |
| Grade | Industrial |
| Special Features | Corrosion resistant |
| IP Rating | IP20 |
| Type | Plug |
| NEMA Rating | 18-60P |
| Body Length | 4.13 in |
| Polarized | Yes |
| Grounding | Non-Grounded |
| Housing Color | Black |
| Number of Blades | 4 |
| Maximum Wire Size | 4 AWG |
| For Maximum Cable Diameter | 1.31 in |
| Voltage Rating | 120/208V AC |
| Minimum Operating Temperature | -40 deg F |
| Maximum Operating Temperature | 167 deg F |
| NEMA Plug Configuration | 18-60P |
| Current Rating | 60 A |
| Minimum Wire Size | 12 AWG |
| Insulation Material | Nylon |
| For Minimum Cable Diameter | 5/8 in |
| Resistance Properties | Corrosion Resistant |
| Horsepower Rating | 7.5 HP |
| Outside Diameter | 2.88 in |
| Wire Connection Type | Screw Terminals |
| Housing Material | Nylon |
| Connection Orientation | Straight |
| Market | Industrial, Commercial |
| UL 94 Flammability Rating | HB |
| Body Style | Straight |
| Dielectric Strength | Withstands 2,000V minimum |
| Terminal Screw Material | 3/8" Allen Head, Plated Steel |
| Flammability | UL 94 HB or better. |
| Blade Holder Material | Nylon |
| Box Terminals Material | Copper |
| Weight (Lbs.) | 0.85 |
| Contact Blades Material | .075" Brass |
| Cord Clamp Material | Glass Reinforced Polyester |
| Retainer Material | Glass Reinforced PET |
| Operating Temp. | Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Temp. Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Current / Amperage Rating | 60 A |
| Dimensions | 4.13 in x 2.88 in x 2.88 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Voltage Rating Description | 3 Phase 120/208 VAC |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Width | 2.88 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 60 A |
| Horsepower - Maximum | 7.5 |
| Length | 4.13 in |
| Industry Standard(s) | CSA Certified UL Listed File E1706 |
| Wire Size | #12 AWG to #4 AWG |
| Cord Range | 0.625"-1.310" |
| Height | 2.88 in |
| Package Quantity | 1 |
