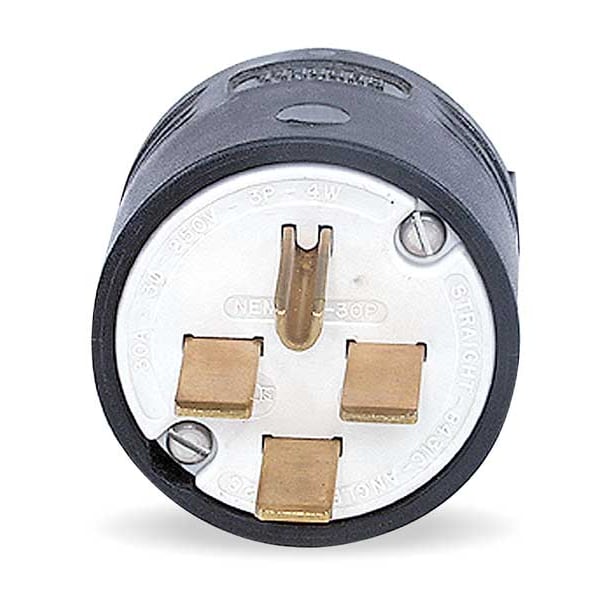

4 Wire Industrial Straight Blade Plug 250VAC 30A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 30 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 15-30P |
| Number of Wires | 4 |
| Phase - Plugs and Receptacles | 3 |
| Antimicrobial | No |
| Color | Black |
| Number of Poles | 3 |
| Corrosion Resistant | Yes |
| Voltage | 250VAC |
| HP | 3 |
| Grade | Industrial |
| Phase | Three |
| Standards | CSA Certified, UL E1706 |
| Material | Nylon |
| Cord Size | 5/8 to 1.31 in |
| IP Rating | IP20 |
| Special Features | Corrosion resistant |
| Amps | 30 |
| Color - Plugs and Receptacles | Black |
| Boot Code | C |
| Type | Plug |
| NEMA Rating | 15-30P |
| Connection Orientation | Straight |
| Market | Industrial |
| Maximum Wire Size | 4 AWG |
| NEMA Plug Configuration | 15-30P |
| Insulation Material | Nylon |
| Wire Connection Type | Screw Terminals |
| Number of Blades | 4 |
| Current Rating | 30 A |
| Minimum Operating Temperature | -40 deg F |
| Grounding | Grounded |
| Minimum Wire Size | 12 AWG |
| Voltage Rating | 250V AC |
| Horsepower Rating | 3 HP |
| For Maximum Cable Diameter | 1.31 in |
| Polarized | Yes |
| Housing Material | Nylon |
| UL 94 Flammability Rating | HB |
| For Minimum Cable Diameter | 5/8 in |
| Resistance Properties | Corrosion Resistant |
| Housing Color | Black |
| Maximum Operating Temperature | 167 deg F |
| Ground Screw Material | 3/8" Allen Head, Plated Steel |
| Weight (Lbs.) | 0.8 |
| Retainer Material | Glass Reinforced PET |
| Box Terminals Material | Copper |
| Operating Temp. | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Body Style | Straight |
| Flammability | UL 94 HB or better. |
| Cord Clamp Material | Glass Reinforced Polyester |
| Contact Blades Material | .100" Brass |
| Temp. Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Ground Contact Blade Material | Brass |
| Terminal Screw Material | Steel - Zn plated |
| Blade Holder Material | Glass Reinforced PET |
| Dielectric Strength | Withstands 2,000V minimum |
| Wire Size | #12 AWG to #4 AWG |
| Performance | Electrical: Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage : Withstands 2,000V minimum Mechanical: Terminal Accommodation: #12 AWG through #4 AWG copper wire only Terminal Identification :Terminals identified in accordance with UL 498 and CSA Environmental: Flammability: UL 94 HB IP Suitability: IP20 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact) |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | UL Listed File E1706 Certified to CSA |
| Current / Amperage Rating | 30 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 30 A |
| Voltage Rating Description | 250 V |
| Package Quantity | 1 |
