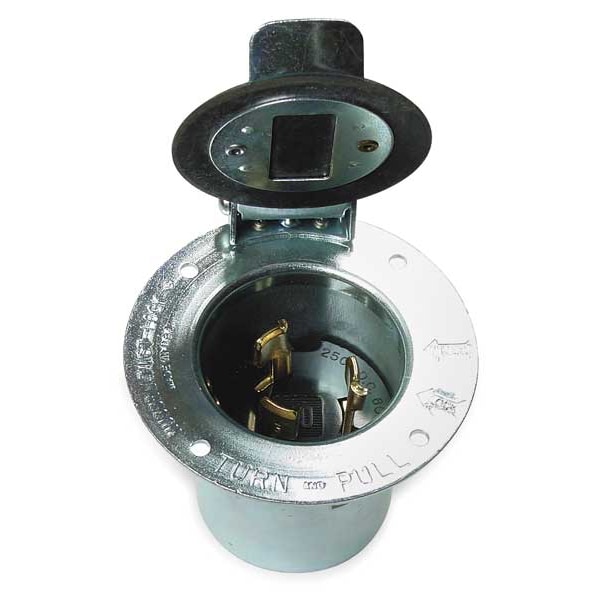

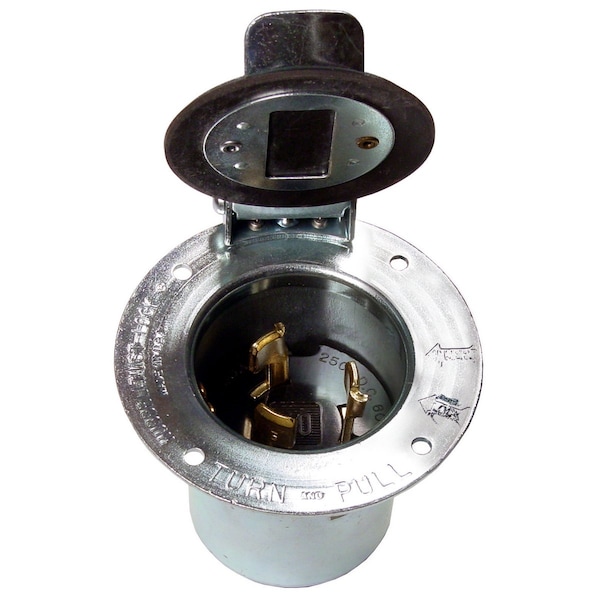

50A Flanged Locking Inlet 3P 4W 600VAC/250VDC
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 600V AC/250V DC |
| Amps | 50 |
| Color | Gray |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Standards | CSA C22.2 No. 42, UL 498 |
| Mounting Type | Flush Mount |
| Grade | General Use |
| Material | Zinc-Plated Steel |
| IP Rating | IP20 |
| NEMA Rating | 12, 4X |
| Special Features | With Stainless Steel Plate |
| NEMA Enclosure Rating | 12, 4X |
| Blade Material | Brass |
| Flange Diameter | 3-1/2 in |
| Maximum Wire Size | 4 AWG |
| Shrouded | No |
| Flange Type | Flanged |
| Maximum Operating Temperature | 75 deg C |
| Includes | Mounting Screws |
| Grounding | Grounded |
| Mount Type | Flush |
| Includes Mounting Hardware | Yes |
| Resistance Properties | Moisture Resistant |
| Housing Color | Silver |
| Overall Depth | 2.56 in |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 8 AWG |
| Current Rating | 50 A |
| Face Diameter | 2.56 in |
| Housing Material Finish | Zinc Plated |
| NEMA Plug Configuration | Non-NEMA |
| Market | Industrial |
| Voltage Rating | 250V DC/600V AC |
| Number of Blades | 4 |
| UL 94 Flammability Rating | V-0 |
| For Location | Indoor |
| Flange Material | Steel |
| Minimum Operating Temperature | -40 Degrees C |
| For Environment | Dry |
| Housing Material | Steel |
| Wire Size | #10 AWG - #6 AWG solid or stranded copper wire only |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Lock Type | Twist-lock |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Weight (Lbs.) | 1.05 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum continuous 75A Deg C; minimum –40A Deg C (w/o impact) |
| Package Quantity | 1 |
