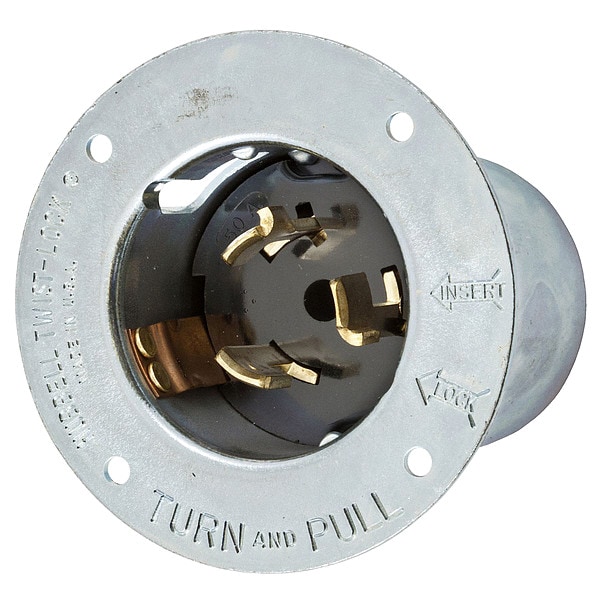

Entrada con bloqueo giratorio de brida de 50 amperios, 3 polos, 4 cables, 125/250VCA, negra.
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 125/250V AC |
| Amps | 50 |
| Color | Gray |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Standards | CSA C22.2 No. 42, UL 498 |
| IP Rating | IP20 |
| Mounting Type | Flush Mount |
| NEMA Rating | 12, 4, 4X |
| Grade | General Use |
| Special Features | Corrosion resistant |
| Material | Zinc-Plated Steel |
| Maximum Operating Temperature | 75 deg C |
| For Location | Indoor |
| Flange Diameter | 3-1/2 in |
| Number of Blades | 4 |
| Overall Depth | 2-5/8 in |
| Market | Industrial |
| Grounding | Grounded |
| Flange Material | Steel |
| For Environment | Dry |
| Current Rating | 50 A |
| Housing Color | Silver |
| Insulation Material | Phenolic |
| Blade Material | Brass |
| Face Diameter | 2.172 in |
| NEMA Enclosure Rating | 12, 4, 4X |
| NEMA Plug Configuration | Non-NEMA |
| Housing Material Finish | Zinc Plated |
| Resistance Properties | Moisture Resistant |
| Wire Connection Type | Screw Terminals |
| Shrouded | No |
| Mount Type | Flush |
| Minimum Wire Size | 10 AWG |
| Flange Type | Flanged |
| Maximum Wire Size | 6 AWG |
| UL 94 Flammability Rating | V-0 |
| Housing Material | Steel |
| Voltage Rating | 125/250V AC |
| Minimum Operating Temperature | -40 Degrees C |
| Lock Type | Twist-lock |
| Flammability | UL 94 V0 |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Weight (Lbs.) | 0.85 |
| Wire Size | #6AWG |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Dielectric Strength | Withstands 2,000V minimum |
| Type | Flanged Inlet |
| Item Type | Single Flanged Inlet |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only |
| Application | Extra Heavy Duty Industrial |
| Voltage Rating Description | 125/250 VAC |
| Height | 2.62 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Length | 2.17 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Connectivity | Pressure Terminal Screws |
| Width | 3-1/2 in |
| Amperage Rating | 50 A |
| Dimensions | 2.17 in x 3-1/2 in x 2.62 in |
| Display Size | Standard Sized Product |
| Material - Mounting Hardware | Screw Mounting |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Package Quantity | 1 |
