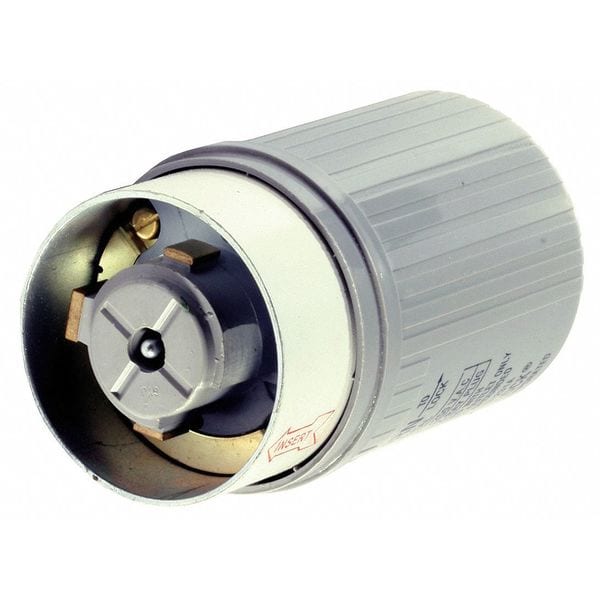

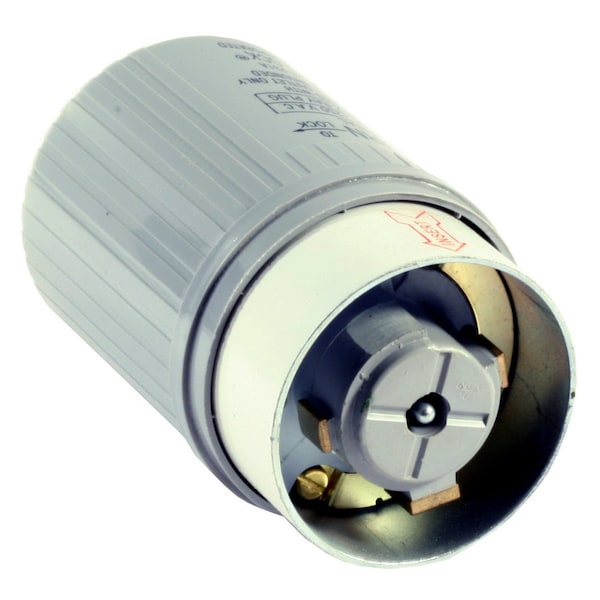

Enchufe bloqueable de hospital de 50 amperes, 2 polos, 3 alambres, 250VCA, color gris.
| Item - Plugs and Receptacles | Locking Plug |
|---|---|
| Item | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Grade - Plugs and Receptacles | Hospital |
| Amps - Plugs and Receptacles | 50 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 50A |
| Voltage - Plugs and Receptacles | 250V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Grade | Hospital Grade |
| Material | Nylon |
| Color - Plugs and Receptacles | Gray |
| NEMA Configuration | Non-NEMA, 3 Blade |
| Standards | CSA Certified, UL Listed |
| Color | Gray |
| Voltage | 250VAC |
| Amps | 50 |
| Cord Size | 0.83 to 1.3 in |
| Antimicrobial | No |
| Corrosion Resistant | No |
| IP Rating | IP30 |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Housing Material | Nylon |
| NEMA Plug Configuration | Non-NEMA |
| Wire Connection Type | Screw Terminals |
| Shrouded | Yes |
| Body Length | 4.81 in |
| Grounding | Grounded |
| Polarized | Yes |
| Connection Orientation | Straight |
| For Minimum Cable Diameter | 0.83 in |
| For Maximum Cable Diameter | 1.3 in |
| Voltage Rating | 250V AC |
| Housing Material Finish | Epoxy Coated |
| Number of Blades | 3 |
| Outside Diameter | 3.03 in |
| Current Rating | 50 A |
| Housing Color | Gray |
| Weight (Lbs.) | 2.85 |
| Package Quantity | 1 |
