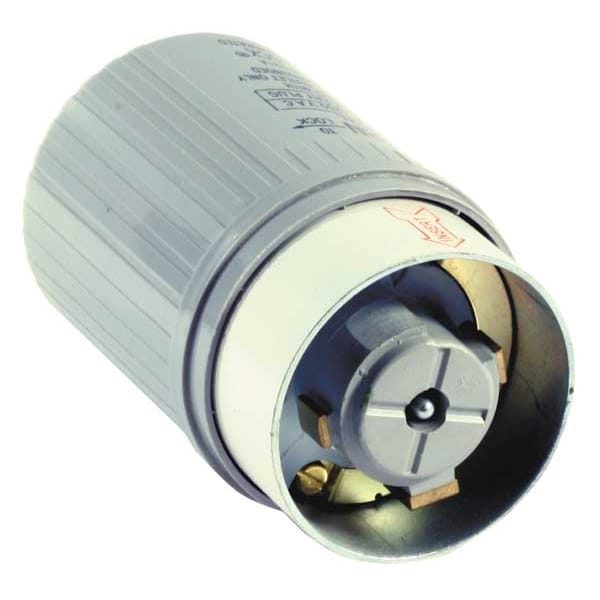

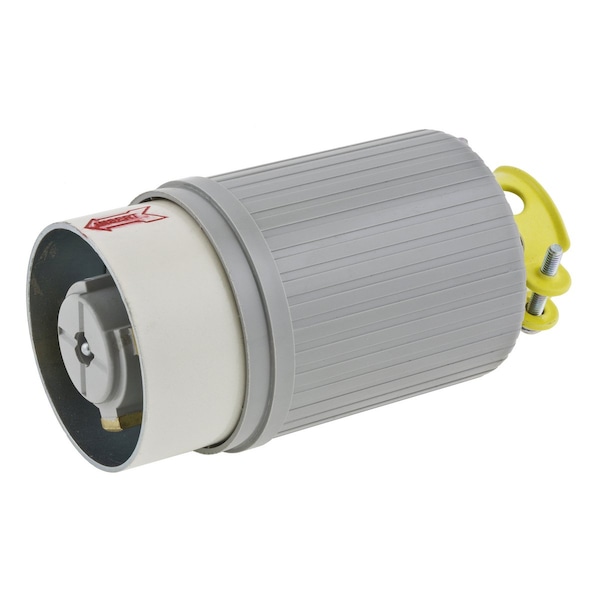

50A Hospital Locking Plug 2P 3W 250VAC GY, Phase: 1
| Item | Locking Plug |
|---|---|
| Item - Plugs and Receptacles | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Grade - Plugs and Receptacles | Hospital |
| Amps - Plugs and Receptacles | 50 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 50A |
| Voltage - Plugs and Receptacles | 250V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Grade | Hospital Grade |
| Standards | CSA Certified, UL Listed |
| Cord Size | 0.83 to 1.3 in |
| Antimicrobial | No |
| Corrosion Resistant | No |
| IP Rating | IP30 |
| Color | Gray |
| Voltage | 250VAC |
| Material | Steel/Lexan |
| Amps | 50 |
| NEMA Configuration | Non-NEMA, 3 Blade |
| Color - Plugs and Receptacles | Gray |
| Carton Quantity | 5 |
| Wire Connection Type | Screw Terminals |
| Housing Material | Lexan, Steel |
| Current Rating | 50 A |
| Number of Blades | 3 |
| Housing Color | Gray |
| Polarized | Yes |
| Face Diameter | 3.03 in |
| Shrouded | Yes |
| Voltage Rating | 250V AC |
| Outside Diameter | 3.03 in |
| Grounding | Grounded |
| For Minimum Cable Diameter | 0.83 in |
| Maximum Wire Size | 8 AWG |
| Connection Orientation | Straight |
| For Maximum Cable Diameter | 1.3 in |
| Body Length | 4.81 in |
| NEMA Plug Configuration | Non-NEMA |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Weight (Lbs.) | 2.1 |
| Package Quantity | 1 |
