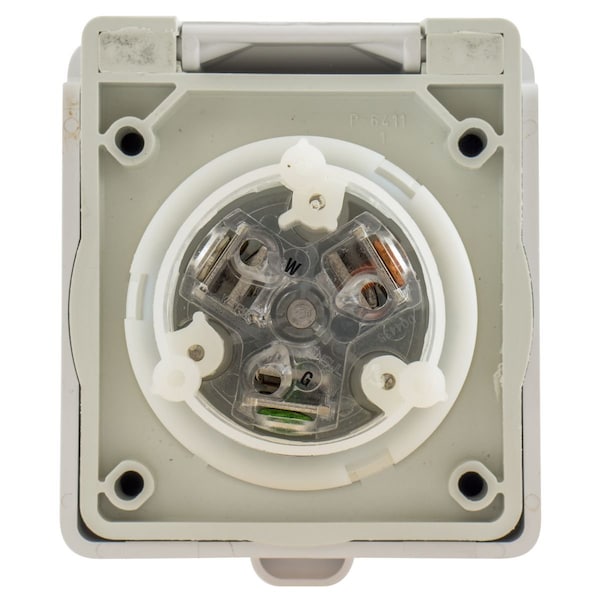

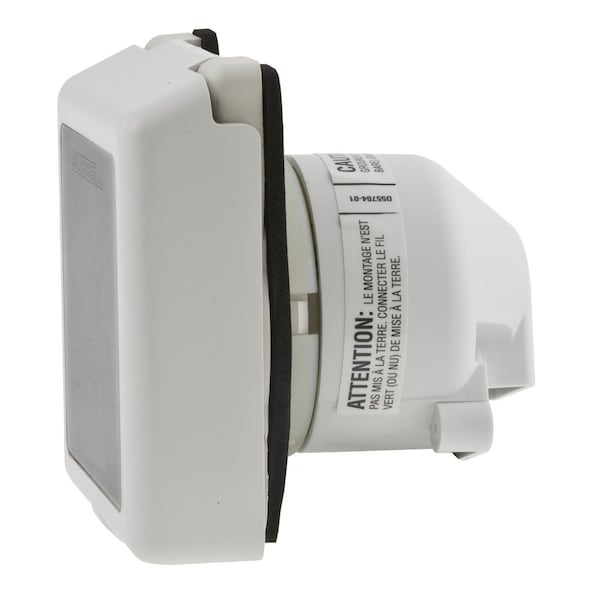

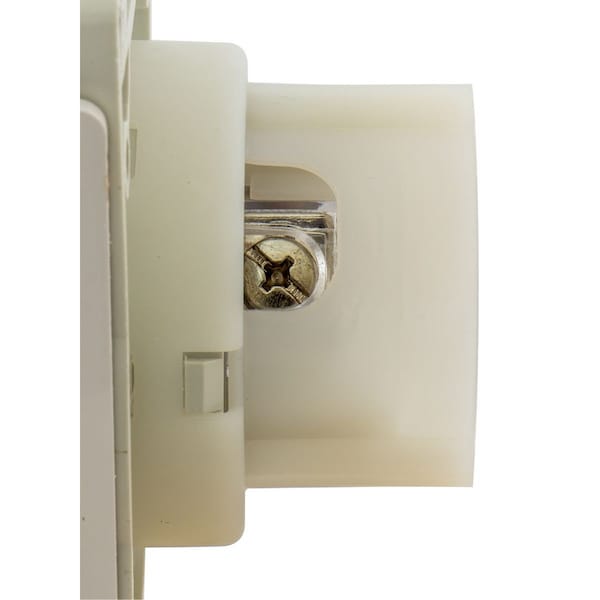

50A Marine Flanged Locking Inlet 2P 3W 125VAC
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 125V AC |
| Amps | 50 |
| Color | White |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| NEMA Rating | 12, 4X |
| Standards | UL Listed |
| Mounting Type | Flush Mount |
| IP Rating | IP55 |
| Special Features | With Cover |
| Grade | Marine |
| Material | Thermoplastic/Composite |
| Housing Material | Thermoplastic |
| Resistance Properties | Corrosion Resistant, Watertight |
| Number of Blades | 3 |
| Includes Mounting Hardware | Yes |
| Shrouded | No |
| Maximum Wire Size | 6 AWG |
| Housing Color | White |
| Mount Type | Flush |
| Voltage Rating | 125V AC |
| Minimum Operating Temperature | -40 Degrees C |
| Maximum Operating Temperature | 75 deg C |
| NEMA Plug Configuration | Non-NEMA |
| Blade Material | Nickel-Plated Brass |
| Maximum Surge Current | 50 A |
| Current Rating | 50 A |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| NEMA Enclosure Rating | 12, 4X |
| Weight (Lbs.) | 0.9 |
| Lock Type | Shore Power Inlets |
| Package Quantity | 1 |
