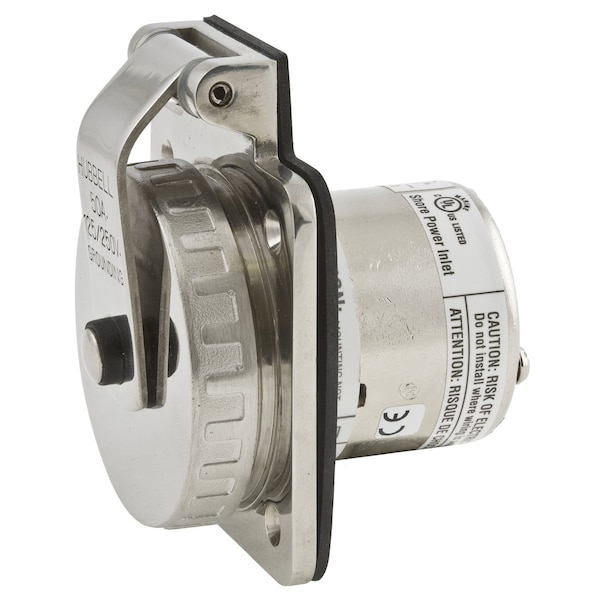

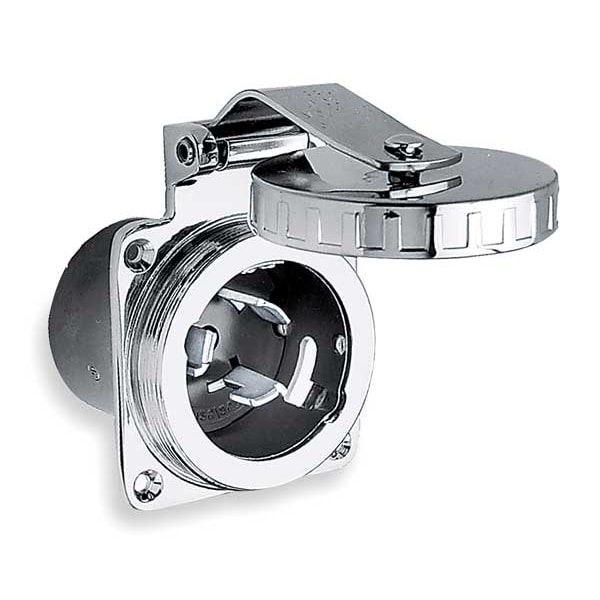

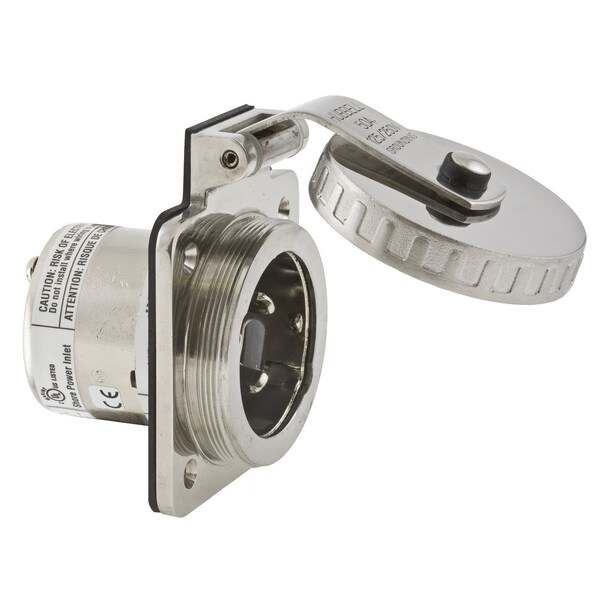

50A Marine Flanged Locking Inlet 3P 4W 125/250VAC
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 125/250V AC |
| Amps | 50 |
| Color | Gray |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Material | Stainless Steel |
| NEMA Rating | 12, 4X |
| Special Features | With Cover |
| IP Rating | IP56 |
| Mounting Type | Flush Mount |
| Standards | UL Listed |
| Grade | Marine |
| NEMA Plug Configuration | Non-NEMA |
| Current Rating | 50 A |
| NEMA Enclosure Rating | 12, 4X |
| Blade Material | Brass |
| Minimum Wire Size | 6 AWG |
| Flange Diameter | 4.08 in |
| Shrouded | No |
| Mount Type | Flush |
| Housing Color | Silver |
| Flange Type | Flanged |
| Housing Material | Thermoplastic |
| Resistance Properties | Moisture Resistant, Corrosion Resistant, Watertight |
| Wire Connection Type | Screw Terminals |
| Minimum Operating Temperature | -40 Degrees C |
| Grounding | Grounded |
| Number of Blades | 4 |
| Face Plate Height | 3.28 in |
| Maximum Operating Temperature | 75 deg C |
| Maximum Wire Size | 6 AWG |
| Voltage Rating | 125/250V AC |
| Weight (Lbs.) | 1.85 |
| Lock Type | Shore Power Inlets |
| Package Quantity | 1 |
