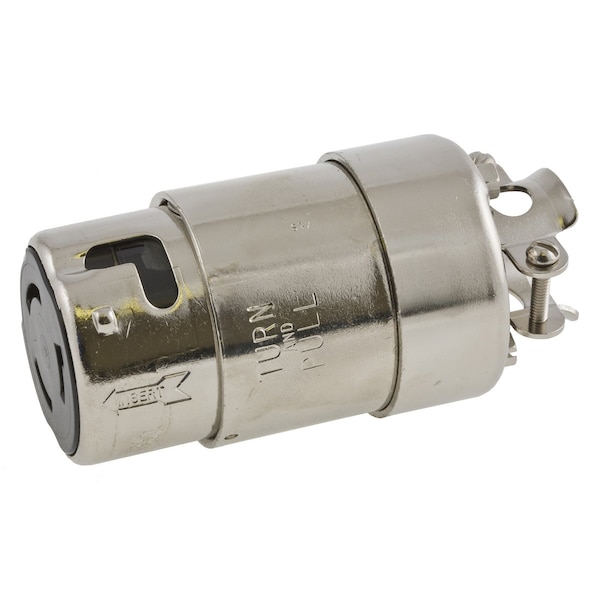

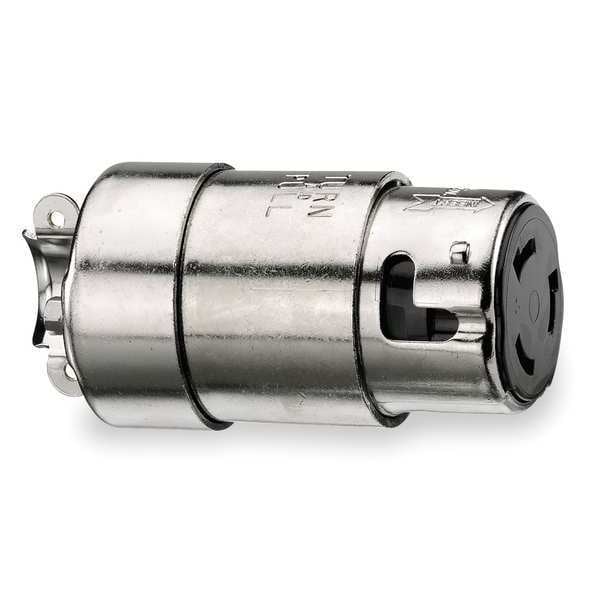

50A Marine Locking Connector 2P 3W 125VAC GY
| Item - Plugs and Receptacles | Locking Connector |
|---|---|
| Item | Locking Connector |
| Amps - Plugs and Receptacles | 50 |
| NEMA Plug Configuration - Plugs and Receptacles | 50A, Non-NEMA |
| Amps | 50 |
| Voltage - Plugs and Receptacles | 125V AC |
| Voltage | 125VAC |
| Number of Poles | 2 |
| NEMA Configuration | Non-NEMA |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Gray |
| Color | Gray |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade - Plugs and Receptacles | Marine |
| Power Indicator | No |
| Cord Size | 0.437 to 1.14 in |
| Corrosion Resistant | Yes |
| Grade | Marine |
| Standards | UL Listed |
| IP Rating | IP20 |
| Material | Nickel Plated Brass |
| Special Features | Corrosion resistant |
| Phase | Single |
| Antimicrobial | No |
| For Minimum Cable Diameter | 1.14 in |
| Minimum Operating Temperature | -40 deg C |
| Midget Locking | No |
| For Location | Indoor |
| Resistance Properties | Corrosion Resistant, Moisture Resistant |
| Voltage Rating | 125V AC |
| Housing Material | Nylon |
| NEMA Receptacle Configuration | Non-NEMA |
| Grounding | Grounded |
| Power Indicating Light | No |
| For Maximum Cable Diameter | 1.14 in |
| Shrouded | No |
| Maximum Operating Temperature | 75 deg C |
| Housing Color | Silver |
| For Environment | Dry |
| Cap Type | No Cap or Cover |
| Wire Connection Type | Screw Terminals |
| Connection Orientation | Straight |
| Current Rating | 50 A |
| UL 94 Flammability Rating | HB |
| Weight | 1.5 |
| Package Quantity | 1 |
