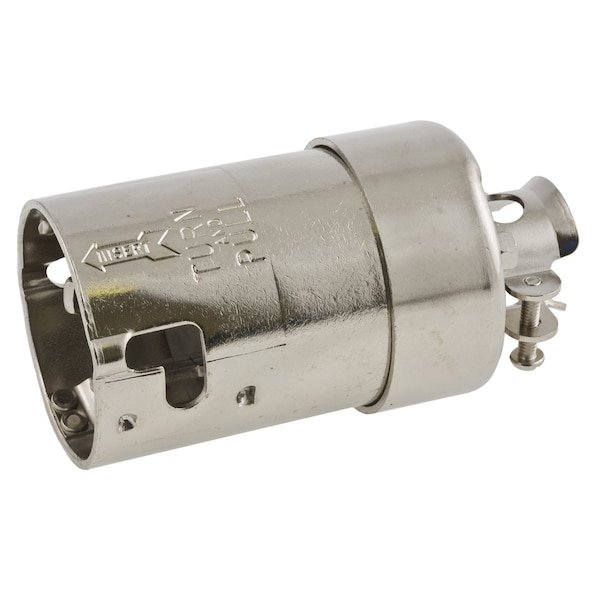

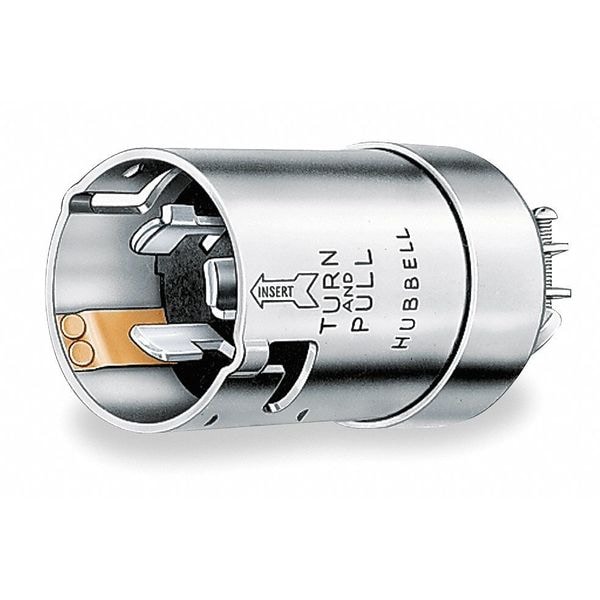

50A Marine Locking Plug 3P 4W 125/250VAC GY
| Item - Plugs and Receptacles | Locking Plug |
|---|---|
| Item | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Grade - Plugs and Receptacles | Marine |
| Amps - Plugs and Receptacles | 50 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 50A |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Single |
| NEMA Configuration | Non-NEMA, 4 Blade |
| Antimicrobial | No |
| Amps | 50 |
| Standards | UL Listed |
| IP Rating | IP20 |
| Color | Gray |
| Special Features | Corrosion resistant |
| Cord Size | 0.437 to 1.14 in |
| Corrosion Resistant | Yes |
| Color - Plugs and Receptacles | Gray |
| Voltage | 125/250VAC |
| Grade | Marine |
| Material | Nickel Plated Brass |
| Connection Orientation | Straight |
| For Environment | Dry |
| NEMA Plug Configuration | Non-NEMA |
| For Location | Indoor |
| Maximum Wire Size | 6 AWG |
| Wire Connection Type | Screw Terminals |
| Number of Blades | 4 |
| Current Rating | 50 A |
| Grounding | Grounded |
| Housing Color | Silver |
| Polarized | Yes |
| Voltage Rating | 125/250V AC |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Impact Resistant |
| Housing Material | Composite |
| Shrouded | Yes |
| Weight (Lbs.) | 1.25 |
| Package Quantity | 1 |
