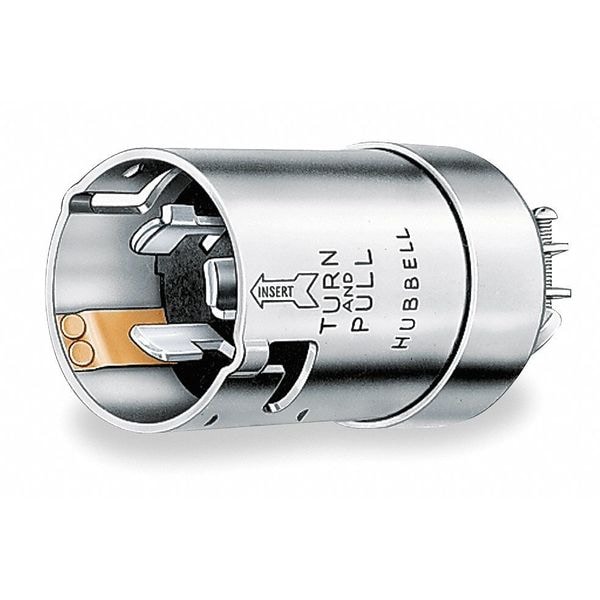

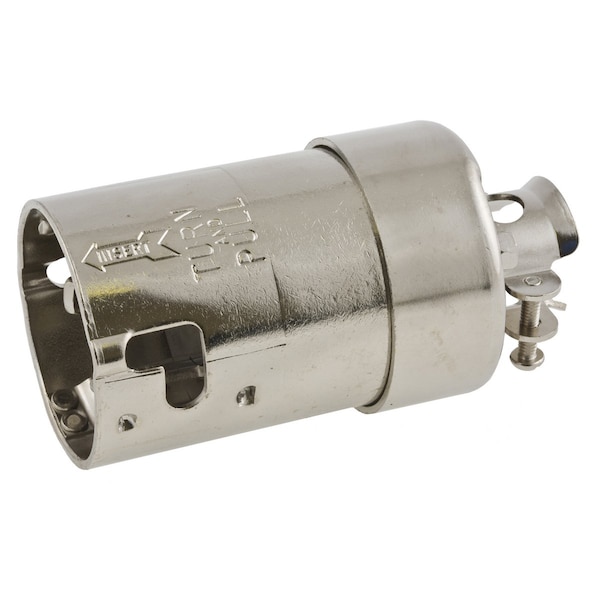

Conector Twist-Lock Marino de 50A, 2 Polos, 3 Cables, 125VAC, Gris.
| Item - Plugs and Receptacles | Locking Plug |
|---|---|
| Item | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Grade - Plugs and Receptacles | Marine |
| Amps - Plugs and Receptacles | 50 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 50A |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Corrosion Resistant | Yes |
| IP Rating | IP20 |
| Color | Gray |
| Cord Size | 0.437 to 1.14 in |
| Amps | 50 |
| Special Features | Corrosion resistant |
| Material | Nickel Plated Brass |
| Grade | Marine |
| Color - Plugs and Receptacles | Gray |
| Standards | UL Listed |
| NEMA Configuration | Non-NEMA, 3 Blade |
| Antimicrobial | No |
| Voltage | 125VAC |
| Wire Connection Type | Screw Terminals |
| For Environment | Dry |
| For Location | Indoor |
| Connection Orientation | Straight |
| Polarized | Yes |
| Housing Color | Silver |
| Voltage Rating | 125V AC |
| Maximum Wire Size | 6 AWG |
| Current Rating | 50 A |
| Number of Blades | 3 |
| Shrouded | Yes |
| Housing Material | Composite |
| NEMA Plug Configuration | Non-NEMA |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Impact Resistant |
| Grounding | Grounded |
| Weight (Lbs.) | 1.25 |
| Package Quantity | 1 |
