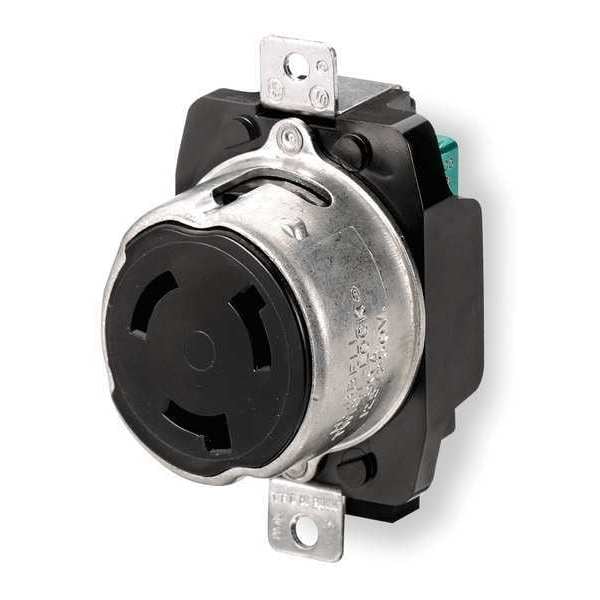

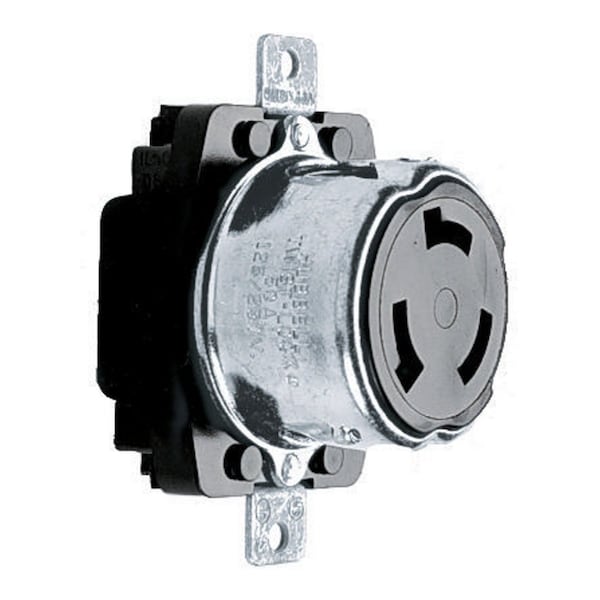

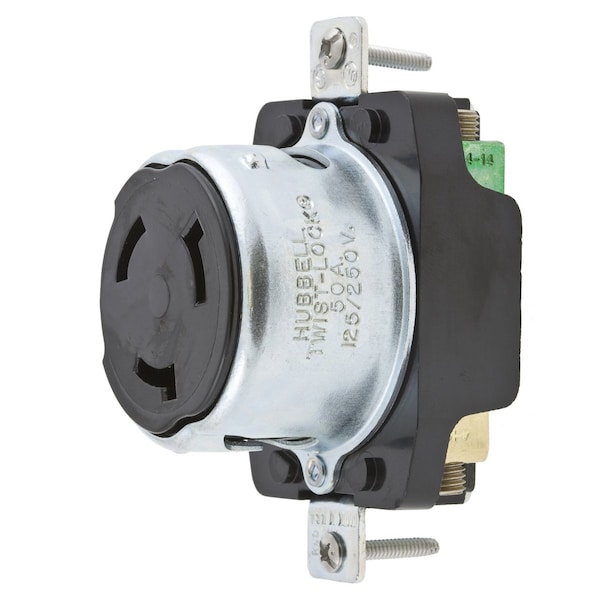

50A Marine Twist-Lock Receptacle 3P 4W 125/250VAC
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 125/250V AC |
| Amps | 50 |
| Color | Black |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| IP Rating | IP20 |
| Standards | UL Listed |
| Special Features | Corrosion resistant |
| Grade | Marine |
| NEMA Rating | 12, 4X |
| Mounting Type | Flush Mount |
| Material | Phenolic |
| Grounding | Grounded |
| NEMA Receptacle Configuration | Non-NEMA |
| For Location | Indoor |
| AFCI | No |
| Flange Type | Non-Flanged |
| Mount Type | Flush |
| Housing Color | Yellow |
| Polarized | Yes |
| Shrouded | No |
| Resistance Properties | Moisture Resistant |
| Flange Diameter | Not Applicable |
| Current Rating | 50 A |
| Maximum Wire Size | 6 AWG |
| Housing Material | Thermoplastic |
| Wire Connection Type | Screw Terminals |
| Cover Type | No Cover |
| Number of Gangs | 1 |
| NEMA Enclosure Rating | 12, 4X |
| Flange Width | Not Applicable |
| Connection Orientation | Straight |
| For Environment | Dry |
| Flange Height | Not Applicable |
| Voltage Rating | 125/250V AC |
| Lock Type | Twist-Lock Receptacles |
| Weight (Lbs.) | 0.85 |
| Package Quantity | 1 |
