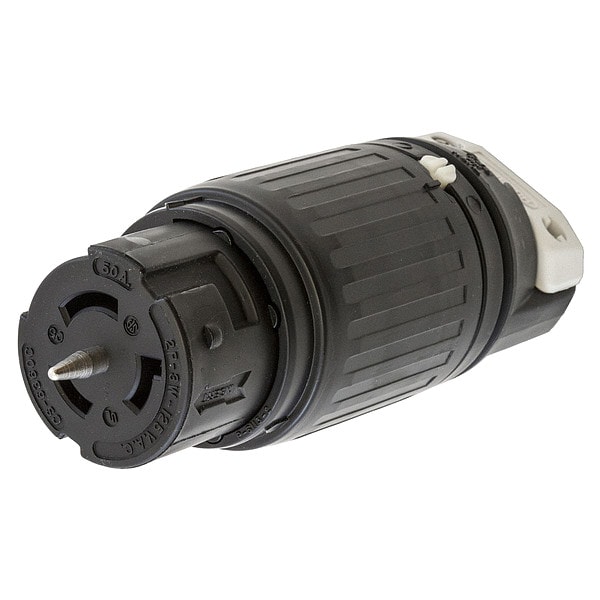

50A Twist-Lock Connector 2P 3W 125VAC BK/WT
| Item | Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Locking Connector |
| Amps - Plugs and Receptacles | 50 |
| NEMA Plug Configuration - Plugs and Receptacles | 50A, Non-NEMA |
| Amps | 50 |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2 |
| NEMA Configuration | Non-NEMA |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black, White |
| Color | Black, White |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| Antimicrobial | No |
| Power Indicator | No |
| IP Rating | IP20 |
| Grade | Industrial/Commercial |
| Phase | Single |
| Corrosion Resistant | No |
| Cord Size | 3/4 to 1-1/8 in |
| Material | Super Tough Nylon |
| Body Material | Black Nylon |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Maximum Wire Size | 6 AWG |
| Cap Type | No Cap or Cover |
| For Maximum Cable Diameter | 1-1/4 in |
| Overall Length | 6-1/2 in |
| Minimum Wire Size | 10 AWG |
| Wire Connection Type | Screw Terminals |
| Market | Industrial |
| Voltage Rating | 125V AC |
| For Environment | Dry |
| For Location | Indoor |
| UL 94 Flammability Rating | HB |
| Resistance Properties | Heat Resistant |
| Housing Material | Nylon |
| Power Indicating Light | No |
| NEMA Receptacle Configuration | Non-NEMA |
| Outside Diameter | 2.563 in |
| For Minimum Cable Diameter | 0.83 in |
| Connection Orientation | Straight |
| Minimum Operating Temperature | -40 deg C |
| Housing Color | Black, White |
| Contact Material | Brass |
| Current Rating | 50 A |
| Maximum Operating Temperature | 75 deg C |
| Midget Locking | No |
| Shrouded | No |
| Grounding | Grounded |
| Dielectric Strength | Withstands 2,000V minimum |
| Weight | 1.05 |
| Type | Connector Body |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Cord Dia. Range | .830"-1.250" |
| Flame Resistant | HB |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 50 A |
| Connectivity | Pressure Terminal Screws |
| Length | 6-1/2 in |
| Wire Size | #10 AWG to #6 AWG |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only |
| Display Size | Standard |
| Material - Mounting Hardware | Cord Mounted |
| Dimensions | 6.50 in x 2.56 in x 2.50 in |
| Width | 2.56 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Cable Range | 0.83 to 1-1/4 in |
| Item Type | Insulgrip Connector |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Voltage Rating Description | 125 V |
| Application | Heavy Duty Industrial |
| Height | 2-1/2 in |
| Cord Range | .830"-1.250" |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Insulation | Insulated Body |
| Current / Amperage Rating | 50 A |
| Package Quantity | 1 |
