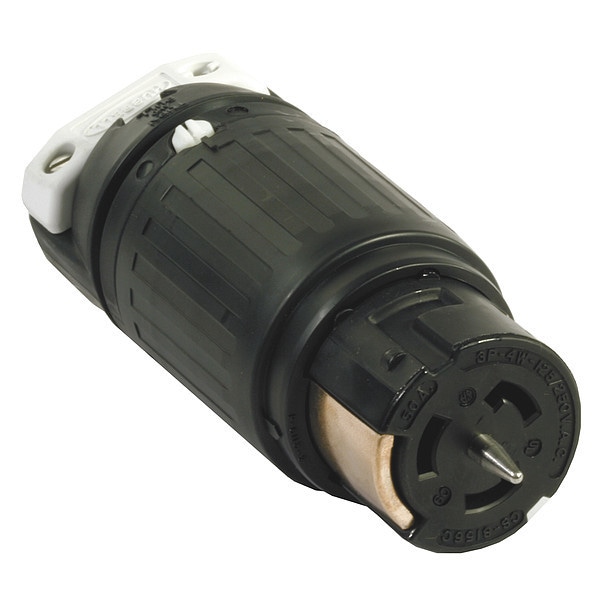

50A Twist-Lock Connector 3P 4W 125/250VAC BK
| Item | Locking Plug Connector |
|---|---|
| Amps - Plugs and Receptacles | 50 |
| Amps | 50 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 50A |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Voltage | 125/250VAC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black |
| Color | Black |
| Grade - Plugs and Receptacles | Industrial |
| For Use With | Hubbell SCB52 |
| IP Rating | IP20 |
| Phase | Three |
| Number of Blades | 4 |
| UL 94 Flammability Rating | HB |
| NEMA Plug Configuration | Non-NEMA |
| Current Rating | 50 A |
| Connection Orientation | Straight |
| Polarized | Yes |
| Minimum Operating Temperature | -40 deg C |
| For Location | Indoor |
| Voltage Rating | 480V AC |
| Housing Color | Black, White |
| Overall Length | 6.37 in |
| Housing Material | Nylon |
| Compatible with Series | Hubbell SCB52 |
| Minimum Wire Size | 10 AWG |
| For Maximum Cable Diameter | 1-1/4 in |
| For Minimum Cable Diameter | 0.83 in |
| Maximum Wire Size | 6 AWG |
| Wire Connection Type | Screw Terminals |
| Shrouded | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Body Length | 6.37 in |
| Market | Industrial |
| Grounding | Grounded |
| Maximum Operating Temperature | 75 deg C |
| Package Quantity | 1 |
