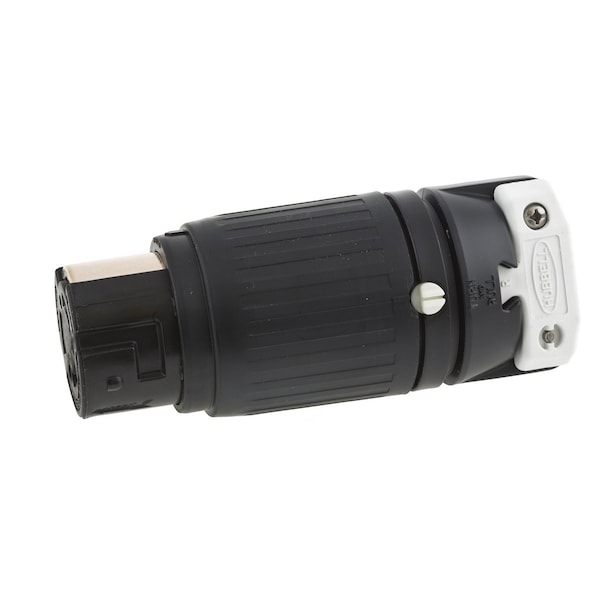

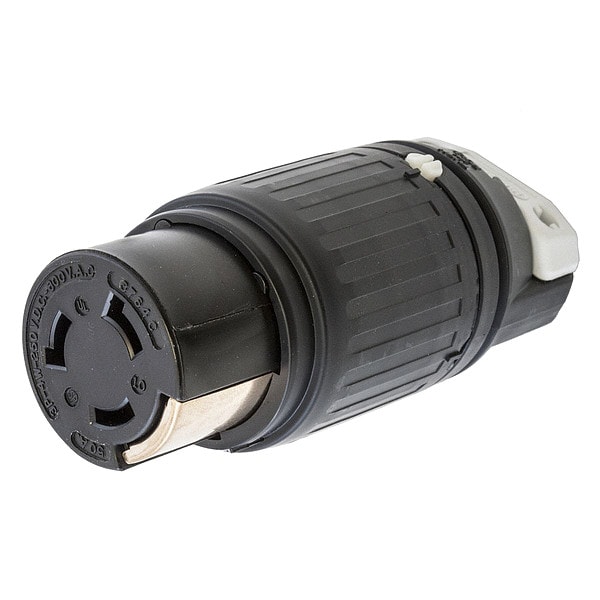

Conector de bloqueo giratorio de 50A, 3 polos, 4 cables, 600VCA/250VCD negro/blanco.
| Item | Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Locking Connector |
| Amps - Plugs and Receptacles | 50 |
| NEMA Plug Configuration - Plugs and Receptacles | 50A, Non-NEMA |
| Amps | 50 |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Voltage | 600VAC/250VDC |
| Number of Poles | 3 |
| NEMA Configuration | Non-NEMA |
| Number of Wires | 4 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black, White |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Color | Black, White |
| Grade - Plugs and Receptacles | Industrial |
| IP Rating | IP20 |
| Antimicrobial | No |
| Corrosion Resistant | No |
| Material | Super Tough Nylon |
| Power Indicator | No |
| Grade | Industrial/Commercial |
| Special Features | For Use With 3D126 |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| Phase | Three |
| Cord Size | 3/4 to 1-1/8 in |
| Body Material | Black Nylon |
| Power Indicating Light | No |
| Housing Color | Black, White |
| For Location | Indoor |
| Resistance Properties | Heat Resistant |
| Voltage Rating | 250V DC/600V AC |
| Minimum Wire Size | 8 AWG |
| For Maximum Cable Diameter | 1-1/4 in |
| Midget Locking | No |
| Market | Industrial |
| For Minimum Cable Diameter | 0.83 in |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| For Environment | Dry |
| Maximum Wire Size | 4 AWG |
| Housing Material | Nylon |
| Cap Type | No Cap or Cover |
| Connection Orientation | Straight |
| Shrouded | No |
| UL 94 Flammability Rating | HB |
| Overall Length | 2.59 in |
| Outside Diameter | 2.563 in |
| NEMA Receptacle Configuration | Non-NEMA |
| Current Rating | 50 A |
| Minimum Operating Temperature | -40 deg C |
| Contact Material | Brass |
| Maximum Operating Temperature | 75 deg C |
| Flame Resistant | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Dielectric Strength | Withstands 2,000V minimum |
| Weight | 1.05 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Cord Dia. Range | .830"-1.250" |
| Package Quantity | 1 |
