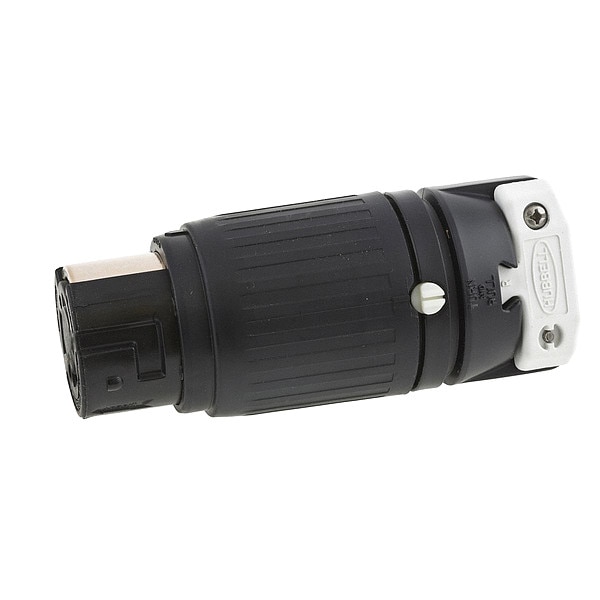

Conector de bloqueo giratorio de 50 amperios, 3 polos, 4 cables, 600VCA / 250VCC, negro/blanco.
| Item - Plugs and Receptacles | Locking Connector |
|---|---|
| Item | Locking Connector |
| Amps - Plugs and Receptacles | 50 |
| Amps | 50 |
| NEMA Plug Configuration - Plugs and Receptacles | 50A, Non-NEMA |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Voltage | 600VAC/250VDC |
| Number of Poles | 3 |
| NEMA Configuration | Non-NEMA |
| Number of Wires | 4 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black, White |
| Color | Black, White |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Material | Super Tough Nylon |
| Corrosion Resistant | No |
| IP Rating | IP20 |
| Antimicrobial | No |
| Grade | Industrial/Commercial |
| Phase | Three |
| Power Indicator | No |
| Special Features | For Use With 3D275 |
| Cord Size | 3/4 to 1-1/8 in |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| Body Material | Black Nylon |
| Housing Color | Black, White |
| Overall Length | 2.56 in |
| Grounding | Grounded |
| Power Indicating Light | No |
| For Environment | Dry |
| NEMA Receptacle Configuration | Non-NEMA |
| Minimum Operating Temperature | -40 deg C |
| Maximum Operating Temperature | 75 deg C |
| Minimum Wire Size | 8 AWG |
| Shrouded | No |
| For Maximum Cable Diameter | 1-1/4 in |
| Contact Material | Brass |
| UL 94 Flammability Rating | HB |
| Maximum Wire Size | 4 AWG |
| Resistance Properties | Heat Resistant |
| For Minimum Cable Diameter | 0.83 in |
| Cap Type | No Cap or Cover |
| Voltage Rating | 250V DC/600V AC |
| For Location | Indoor |
| Current Rating | 50 A |
| Connection Orientation | Straight |
| Outside Diameter | 2.563 in |
| Market | Industrial |
| Midget Locking | No |
| Wire Connection Type | Screw Terminals |
| Housing Material | Nylon |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Dielectric Strength | Withstands 2,000V minimum |
| Cord Dia. Range | .830"-1.250" |
| Weight | 1.05 |
| Type | Connector Body |
| Flame Resistant | HB |
| Width | 2.56 in |
| Insulation | Insulated Body |
| Current / Amperage Rating | 50 A |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Wire Size | #8 AWG to #4 AWG |
| Display Size | Standard |
| Cable Range | 0.83 to 1-1/4 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only |
| Height | 6-1/2 in |
| Voltage Rating Description | 250 VDC/600 VAC |
| Connectivity | Pressure Terminal Screws |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | 50A Insulgrip® Connector |
| Length | 2.56 in |
| Dimensions | 2.56 in x 2.56 in x 6.50 in |
| Application | Heavy Duty Industrial |
| Cord Range | .830"-1.250" |
| Amperage Rating | 50 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Package Quantity | 1 |
