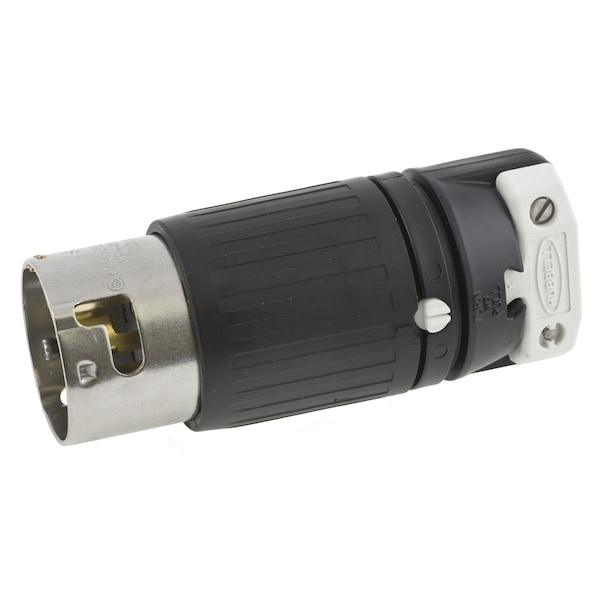

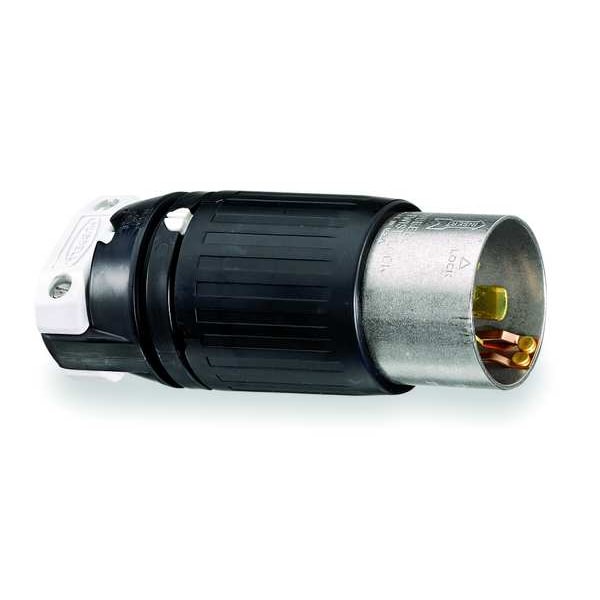

Clavija con bloqueo de giro de 50A 3 polos 4 cables 600VCA/250VCD Negro/Blanco.
| Item - Plugs and Receptacles | Locking Plug |
|---|---|
| Item | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 50 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 50A |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Single |
| NEMA Configuration | Non-NEMA, 4 Blade |
| Material | Super Tough Nylon |
| Grade | Industrial |
| IP Rating | IP20 |
| Color - Plugs and Receptacles | Black, White |
| Corrosion Resistant | No |
| Cord Size | 3/4 to 1-1/8 in |
| Voltage | 600VAC/250VDC |
| Color | Black, White |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| Antimicrobial | No |
| Amps | 50 |
| Outside Diameter | 2.563 in |
| Minimum Wire Size | 8 AWG |
| Housing Color | Black, White |
| For Location | Indoor |
| Market | Industrial |
| Polarized | Yes |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | HB |
| Shrouded | Yes |
| For Maximum Cable Diameter | 1-1/4 in |
| For Minimum Cable Diameter | 0.83 in |
| For Environment | Dry |
| NEMA Plug Configuration | Non-NEMA |
| Blade Material | Brass |
| Maximum Operating Temperature | 75 deg C |
| Body Length | 2.56 in |
| Voltage Rating | 250V DC/600V AC |
| Grounding | Grounded |
| Housing Material | Nylon |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Number of Blades | 4 |
| Overall Length | 2.56 in |
| Minimum Operating Temperature | -40 deg C |
| Wire Connection Type | Screw Terminals |
| Current Rating | 50 A |
| Maximum Wire Size | 4 AWG |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum continuous 75A deg C; minimum –40A deg C (w/o impact) |
| Weight (Lbs.) | 1.3 |
| Flammability | HB or better |
| Package Quantity | 1 |
