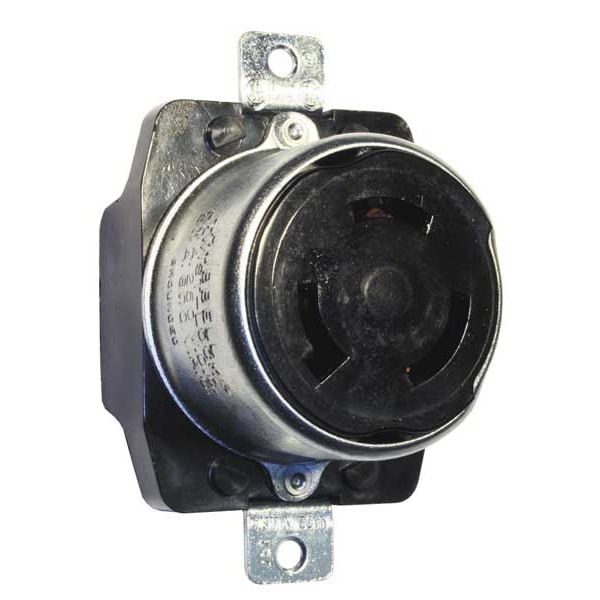

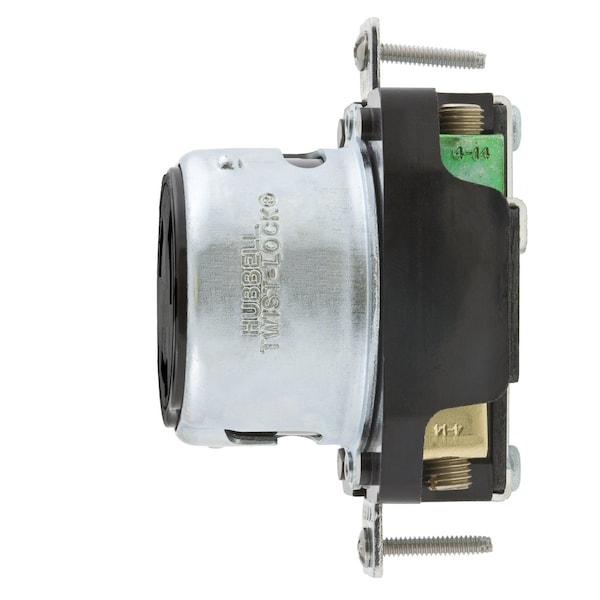

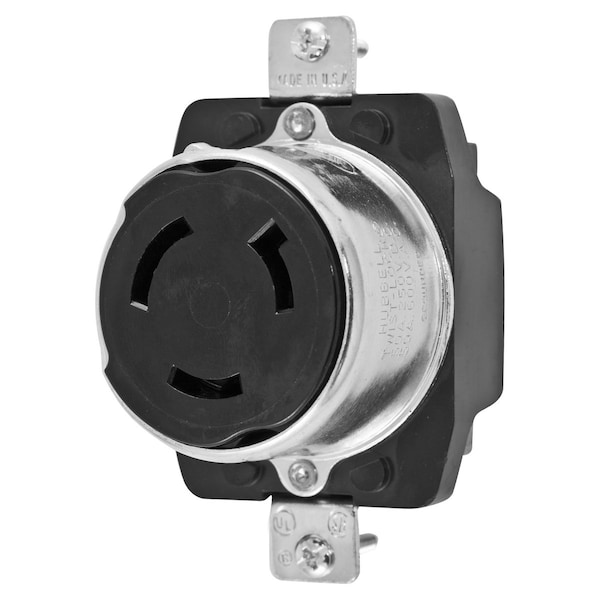

50A Twist-Lock Receptacle 2P 3W 600VAC/250VDC BK
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 600V AC/250V DC |
| Amps | 50 |
| Color | Black |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single, Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Grade | Industrial |
| NEMA Rating | 12, 4X |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| IP Rating | IP20 |
| Special Features | With Cover |
| Material | Impact Modified PBT |
| Mounting Type | Flush Mount |
| Polarized | Yes |
| Voltage Rating | 250V DC/600V AC |
| Housing Material | Phenolic |
| Contact Material | Brass |
| Resistance Properties | Heat Resistant |
| Wire Connection Type | Screw Terminals |
| Mount Type | Flush |
| Maximum Wire Size | 4 AWG |
| NEMA Enclosure Rating | 1 |
| Flange Diameter | Not Applicable |
| For Location | Indoor |
| UL 94 Flammability Rating | V-2 |
| For Environment | Dry |
| Cover Type | No Cover |
| Housing Color | Black |
| Flange Height | Not Applicable |
| Minimum Wire Size | 8 AWG |
| Current Rating | 50 A |
| AFCI | No |
| Minimum Operating Temperature | -40 Degrees C |
| Number of Gangs | 1 |
| Grounding | Grounded |
| NEMA Receptacle Configuration | Non-NEMA |
| Shrouded | No |
| Flange Type | Non-Flanged |
| Maximum Operating Temperature | 75 deg C |
| Connection Orientation | Straight |
| Flange Width | Not Applicable |
| Market | Industrial |
| Base Material | Black Thermoset |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Lock Type | Twist-lock |
| Weight (Lbs.) | 0.75 |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Spring Material | .100"/.040" Brass |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Wire Size | #10 AWG - #6 AWG solid or stranded copper wire only |
| Package Quantity | 1 |
