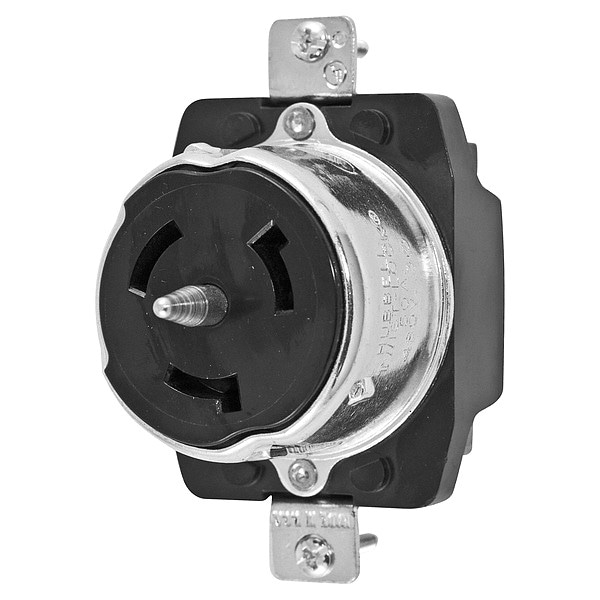

Receptáculo de bloqueo giratorio de 50A 3P 4W 480VCA NEGRO
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 480V AC |
| Amps | 50 |
| Color | Black |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Shrouded |
| Wiring Style | Standard |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| Special Features | With Locking Cover |
| IP Rating | IP20 |
| Grade | Industrial |
| Mounting Type | Flush Mount |
| NEMA Rating | 4, 4X, 12 |
| Material | Impact Modified PBT |
| For Environment | Dry |
| Voltage Rating | 480V AC |
| Mount Type | Flush |
| Maximum Operating Temperature | 75 deg C |
| Wire Connection Type | Screw Terminals |
| Housing Material | Phenolic |
| Contact Material | Brass |
| Maximum Wire Size | 6 AWG |
| Flange Type | Non-Flanged |
| Resistance Properties | Heat Resistant |
| Polarized | Yes |
| Current Rating | 50 A |
| Connection Orientation | Straight |
| Grounding | Grounded |
| Shrouded | Yes |
| NEMA Receptacle Configuration | Non-NEMA |
| NEMA Enclosure Rating | 1 |
| UL 94 Flammability Rating | V-0 |
| Flange Width | Not Applicable |
| For Location | Indoor |
| Housing Color | Black |
| Market | Industrial |
| AFCI | No |
| Minimum Wire Size | 10 AWG |
| Cover Type | No Cover |
| Number of Gangs | 1 |
| Flange Height | Not Applicable |
| Flange Diameter | Not Applicable |
| Minimum Operating Temperature | -40 Degrees C |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Weight (Lbs.) | 0.75 |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Lock Type | Twist-lock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #10 AWG min #6 AWG max |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Spring Material | .100"/.040" Brass |
| Length | 2.69 in |
| Application | Heavy Duty Industrial |
| Item Type | Receptacles |
| Amperage Rating | 50 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Height | 2.36 in |
| Connectivity | Screw Terminals |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only |
| Material - Mounting Hardware | Screw Mounting |
| Dimensions | 2.69 in x 2.11 in x 2.36 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Type | Receptacle |
| Display Size | Standard Sized Product |
| Dielectric Strength | Withstands 2,000V minimum |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current / Amperage Rating | 50 A |
| Voltage Rating Description | 3-Phase Delta 480 VAC |
| Width | 2.11 in |
| Package Quantity | 1 |
