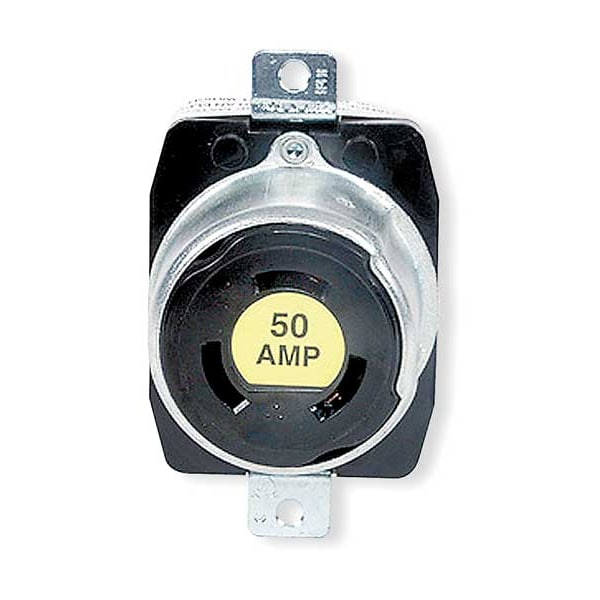

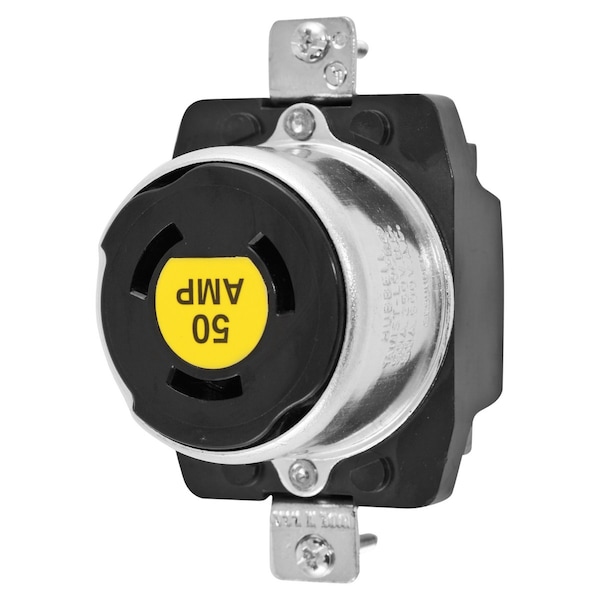

50A Twist-Lock Receptacle 3P 4W 600VAC/250VDC BK
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 600V AC/250V DC |
| Amps | 50 |
| Color | Black |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Single, Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| NEMA Rating | 4x, 12 |
| Special Features | With Cover |
| Material | Impact Modified PBT |
| Mounting Type | Flush Mount |
| IP Rating | IP20 |
| Grade | Industrial |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| Maximum Wire Size | 4 AWG |
| For Location | Indoor |
| Housing Material | Phenolic |
| Wire Connection Type | Screw Terminals |
| NEMA Enclosure Rating | 1 |
| Resistance Properties | Heat Resistant |
| Grounding | Grounded |
| Connection Orientation | Straight |
| Maximum Operating Temperature | 75 deg C |
| Housing Color | Black |
| Cover Type | No Cover |
| Shrouded | No |
| UL 94 Flammability Rating | V-0 |
| AFCI | No |
| Voltage Rating | 250V DC/600V AC |
| Mount Type | Flush |
| Contact Material | Brass |
| For Environment | Dry |
| Number of Gangs | 1 |
| Flange Height | Not Applicable |
| Minimum Operating Temperature | -40 Degrees C |
| Market | Industrial |
| Polarized | Yes |
| Minimum Wire Size | 8 AWG |
| Flange Width | Not Applicable |
| Flange Diameter | Not Applicable |
| Flange Type | Non-Flanged |
| Current Rating | 50 A |
| NEMA Receptacle Configuration | Non-NEMA |
| Lock Type | Twist-lock |
| Operating Temp. | Maximum continuous 75A Deg C; minimum –40A Deg C (w/o impact) |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flammability | UL 94 V0 |
| Spring Material | .100"/.040" Brass |
| Wire Size | #10 AWG min #6 AWG max |
| Weight (Lbs.) | 0.75 |
| Package Quantity | 1 |
