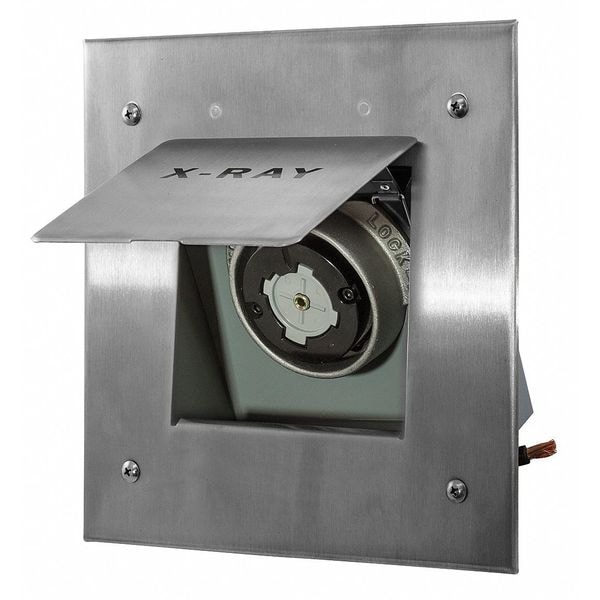

Receptáculo con bloqueo de 60A para hospital, 2 polos 3 cables, 250VAC.
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 240V AC |
| Amps | 60 |
| Color | Gray |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| IP Rating | IP30 |
| Grade | Hospital Grade |
| Material | Nylon |
| NEMA Rating | 3R |
| Standards | CSA Certified, UL Listed |
| Mounting Type | Flush Mount |
| Special Features | With Aluminum Plate |
| NEMA Receptacle Configuration | Non-NEMA |
| NEMA Enclosure Rating | 1 |
| Connection Orientation | Straight |
| Voltage Rating | 250V AC |
| Cover Type | No Cover |
| For Environment | Dry |
| Mount Type | Flush |
| Shrouded | No |
| AFCI | No |
| Flange Type | Flanged |
| Housing Color | Black, Gray |
| Current Rating | 60 A |
| Polarized | Yes |
| Housing Material | Thermoplastic |
| For Location | Indoor |
| Resistance Properties | Impact Resistant |
| Wire Connection Type | Screw Terminals |
| Number of Gangs | 1 |
| Maximum Wire Size | 4 AWG |
| Flange Shape | Rectangular |
| Grounding | Grounded |
| Weight (Lbs.) | 4.1 |
| Lock Type | mobile-xray |
| Wire Size | #4 AWG |
| Display Size | Standard Sized Product |
| Voltage Rating Description | 250V kV |
| Connectivity | Pressure Terminal Screws |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 60 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 60 A |
| Wattage | 15000 |
| Material - Mounting Hardware | Screw Mounting |
| Item Type | Single Receptacle |
| Application | Mobile X-Ray Devices |
| Package Quantity | 1 |
