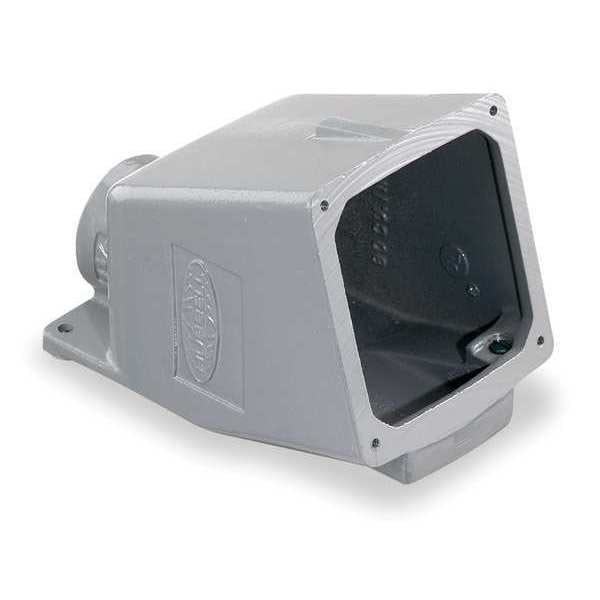

Angl Back Box, 20/30A, 1"Hub, 15, Nonmetalc
| Item | Angle Back Box |
|---|---|
| Box Type | Feed Through |
| Type | Back Box |
| Amps | 20/30 |
| Angle | 15 Degrees |
| Hub | 1 in |
| Color - Plugs and Receptacles | Gray |
| Length | 4-3/8 in |
| Material | Thermoplastic |
| Width | 3-7/8 in |
| Package Quantity | 1 |
| Use With | IEC 309 Pin and Sleeve Devices |
| Includes | Mounting Screws |
| Color | Gray |
| Standards | UL Raintight and External Icing Test |
| Length (Straight Wireway) | 4-3/8 in |
| Material Type | Non-Metallic |
| Mount Type | Surface |
| Housing Color | Gray |
| Overall Length | 5.67 in |
| For Use With | Twist-Lock(R) Devices |
| Resistance Properties | Moisture Resistant |
| Box Angle | 15 deg |
| Hub Type | Dead End |
| Overall Height | 3.91 in |
| Compatible with Series | Twist-Lock |
| Market | Industrial |
| NEMA Enclosure Rating | 4X |
| Hub Diameter | 1 in |
| Overall Width | 4.44 in |
| Number of Gangs | 1 |
| Current Rating | 20/30 A |
| IP Rating | IP67 |
| Material - Mounting Hardware | Mounting Screws |
| Dimensions | 5.67 in x 4.44 in x 3.91 in |
| Construction | Molded |
| Style | For 20 And 30A Watertight Safety Shroud Receptacles And Inlets |
| Application | 15 Degree Angled |
| Industry Standard(s) | UL Raintight and External Icing Test |
| Height | 3.91 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | For 16, 20, 30 and 32 Amp Devices |
| Performance | Environmental - Moisture Resistance - IP67 Suitability |
| Item Type | Mounting Box |
| Cable Entry | Through Hub |
| Knockouts | 1 in NPT |
| Number Of Outlets | Accepts 1-Device |
