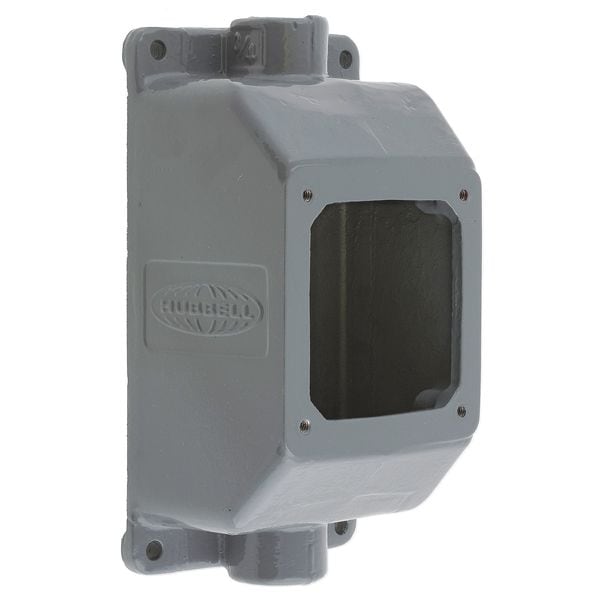

Back Box, 20/30A, 1" Hub, Straight, Metallic
| Item | Back Box |
|---|---|
| Box Type | Feed Through |
| Type | Back Box |
| Angle | Straight |
| Amps | 20/30 |
| Hub | 1 in |
| Color - Plugs and Receptacles | Gray |
| Length | 7-1/8 in |
| Material | Aluminum |
| Width | 4-1/2 in |
| Use With | IEC 309 Pin and Sleeve Devices |
| Includes | Mounting Screws |
| Package Quantity | 1 |
| Standards | UL/CSA |
| Color | Gray |
| Length (Straight Wireway) | 7-1/8 in |
| Hub Type | Feed Through |
| Housing Color | Gray |
| Overall Length | 7.14 in |
| Overall Height | 4-1/2 in |
| Overall Width | 3.06 in |
| Number of Gangs | 1 |
| Current Rating | 20/30 A |
| Material Type | Metallic |
| Mount Type | Surface |
| Compatible with Series | Twist-Lock |
| NEMA Enclosure Rating | 4X |
| For Use With | Twist-Lock(R) Devices |
| Box Angle | Straight |
| Hub Diameter | 1 in |
| IP Rating | IP54 |
| Display Size | For 16, 20, 30 and 32 Amp Devices |
| Number Of Outlets | Accepts 1-Device |
| Dimensions | 7.14 in x 3.06 in x 4.5 in |
| Cable Entry | Through Hub |
| Height | 4-1/2 in |
| Construction | Cast |
| Knockouts | 1" NPT Hub |
| Material - Mounting Hardware | Mounting Screws |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Item Type | Mounting Box |
| Style | For 20 And 30A Watertight Safety Shroud Receptacles And Inlets |
| Application | Straight Feed-Thru |
