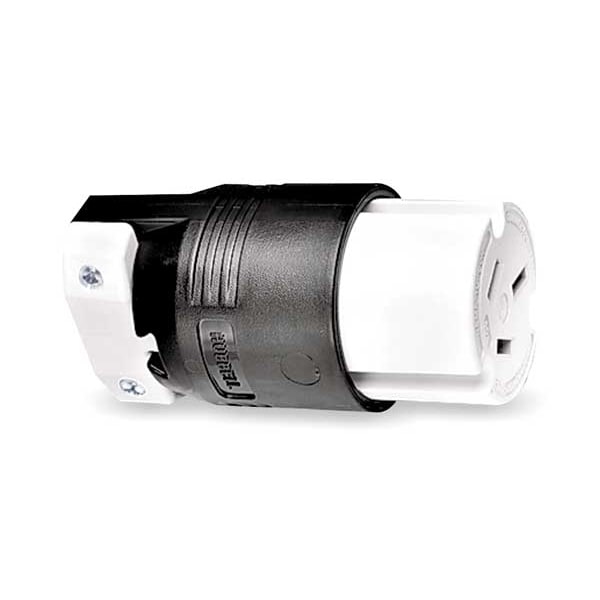

Conector, 10-50R, 50A, 125/250V
| Item - Plugs and Receptacles | Straight Blade Connector |
|---|---|
| Amps - Plugs and Receptacles | 50 |
| Voltage | 125/250VAC |
| Voltage - Plugs and Receptacles | 125/250V AC |
| NEMA Receptacle Configuration | 10-50R |
| NEMA Plug Configuration - Plugs and Receptacles | 10 to 50 R |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | White, Black |
| Grade - Plugs and Receptacles | General |
| Antimicrobial | No |
| Material | Nylon |
| IP Rating | IP20 |
| Amps | 50 |
| Special Features | Moisture, Dust, and Weather Resistant |
| Boot Code | C |
| Corrosion Resistant | No |
| HP | 2 hp |
| Cord Size | 5/8 to 1.218 in |
| Color | Black, White |
| Power Indicator | No |
| Grade | Federal Specification |
| Standards | CSA Certified, UL Listed |
| Item | Straight Blade Connector |
| Phase | Single |
| Voltage Rating | 125/250V AC |
| Connection Orientation | Straight |
| For Maximum Cable Diameter | 1.22 in |
| Power Indicating Light | No |
| Horsepower Rating | 3 HP |
| Housing Material | Thermoplastic Elastomer |
| Grounding | Non-Grounded |
| Minimum Wire Size | 12 AWG |
| For Minimum Cable Diameter | 0.63 in |
| Housing Color | Black |
| Resistance Properties | Dust Ignition Proof, Moisture Resistant, Weather Resistant |
| Polarized | Yes |
| Overall Length | 5-3/4 in |
| Market | Industrial, Commercial |
| Wire Connection Type | Screw Terminals |
| Shrouded | No |
| Maximum Wire Size | 4 AWG |
| Cap Type | No Cap or Cover |
| Maximum Operating Temperature | 75 deg C |
| Minimum Operating Temperature | -40 Degrees C |
| Current Rating | 50 A |
| For Location | Indoor |
| For Environment | Dry |
| Weight | 1 lb |
| Dielectric Strength | Withstands 2,000V minimum. |
| Grounding Style | Non-Grounding |
| Blade Type | Straight Blade |
| Contact Material | Brass |
| Connectivity | Screw Terminals |
| Insulation | Insulated Body |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Nema Rating | 10 to 50 R |
| Voltage Rating Description | 125/250 V |
| Current / Amperage Rating | 50 A |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Cord Range | 0.625"-1.218" |
| Industry Standard(s) | CSA Certified UL Listed File E1706 |
| Application | Commercial, Industrial |
| Dimensions | 5-3/4 in x 2.88 in x 2.88 in |
| Display Size | Standard |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Conductor Range | #10 AWG |
| Number Of Conductors | 3-Wire Non-Grounding |
| Type | Connector Body |
| Item Type | Insulgrip |
| Height | 2.88 in |
| Amperage Rating | 50 A |
| Length | 5-3/4 in |
| Wire Size | #12 AWG to #4 AWG |
| Width | 2.88 in |
| Horsepower - Maximum | 3 |
| Package Quantity | 1 |
