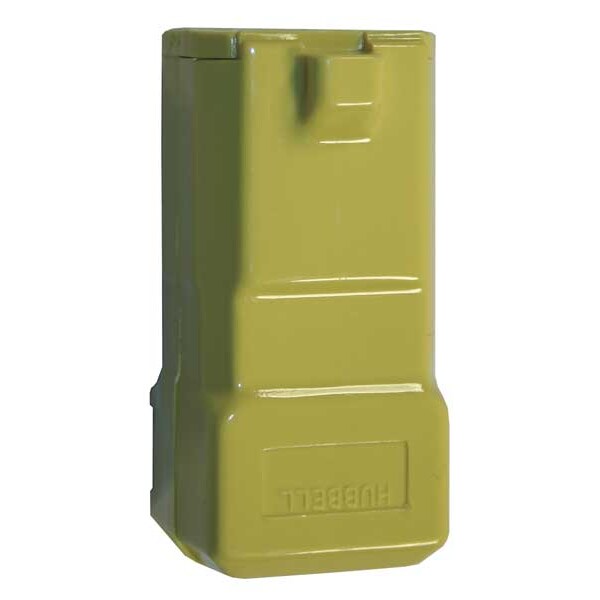

Connector, 5-15R, 15A, 125V
| Item - Plugs and Receptacles | Straight Blade Connector |
|---|---|
| Amps - Plugs and Receptacles | 15 |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration | 5-15R |
| NEMA Plug Configuration - Plugs and Receptacles | 5 to 15 R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Hinged |
| Color - Plugs and Receptacles | Yellow |
| Grade - Plugs and Receptacles | General |
| Antimicrobial | No |
| Corrosion Resistant | No |
| Cord Size | 0.22 to 0.66 in |
| Special Features | Moisture, Dust, and Weather Resistant |
| Material | Nylon |
| Color | Yellow |
| Amps | 15 |
| Phase | Single |
| Power Indicator | No |
| Grade | Marine |
| Item | Straight Blade Connector |
| Standards | UL Listed |
| IP Rating | IP20 |
| For Location | Indoor |
| Minimum Operating Temperature | -40 Degrees C |
| Housing Color | Yellow |
| Maximum Wire Size | 12 AWG |
| Power Indicating Light | No |
| Minimum Wire Size | 14 AWG |
| Shrouded | No |
| Horsepower Rating | 0.5 HP |
| Wire Connection Type | Screw Terminals |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.66 in |
| Grounding | Grounded |
| Housing Material | Thermoplastic Elastomer |
| Maximum Operating Temperature | 75 deg C |
| Resistance Properties | Corrosion Resistance |
| Current Rating | 15 A |
| Voltage Rating | 125 V AC |
| Market | Industrial, Commercial |
| For Minimum Cable Diameter | 0.22 in |
| Connection Orientation | Straight |
| Polarized | Yes |
| Cap Type | No Cap or Cover |
| Blade Type | Straight Blade |
| Grounding Style | Grounding |
| Weight | 0.15 lb |
| Nema Rating | 5 to 15 R |
| Industry Standard(s) | UL Listed |
| Connectivity | Screw Terminals |
| Insulation | Insulated Body |
| Current / Amperage Rating | 15 A |
| Performance | Electrical - Dielectric Voltage - Withstands 2,000V minimum Electrical - Max. Working Voltage - 125V or 250V as rated Electrical - Temperature Rise - Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Molded Rating on Device Face Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA (Brass, White, Green) |
| Amperage Rating | 15 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Conductor Range | #14 AWG to #12 AWG |
| Display Size | Standard |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number Of Conductors | 3-Wire Grounding |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Material - Mounting Hardware | Cord Mounted |
| Item Type | Valise |
| Application | Marine Grade |
| Package Quantity | 1 |
